The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting Halo Electronics Inc directly. A good rule of thumb is to follow the IPC-7351 standard for land pattern design and to ensure a solid ground plane under the component.
To ensure optimal thermal performance, ensure good airflow around the component, use a thermal interface material (TIM) if necessary, and follow the recommended PCB layout guidelines. The component's thermal resistance (RθJA) is specified in the datasheet, and the maximum operating temperature is 125°C.
The recommended soldering conditions for the TG110-AEX50N5LF are a peak temperature of 260°C, with a soldering time of 3-5 seconds. It's essential to follow the manufacturer's recommended soldering profile to prevent damage to the component.
Yes, the TG110-AEX50NLF is a sensitive electronic component and requires proper handling and storage. It's recommended to store the component in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage.
The TG110-AEX50NLF has an MSL rating of 3, which means it can withstand a maximum of 168 hours of exposure to 30°C/60% RH before soldering. It's essential to follow the manufacturer's recommended storage and handling procedures to prevent moisture-related damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TG110-AEX50N5LF Overview

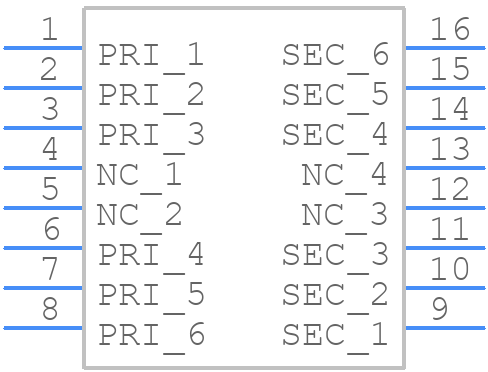

Use the download button to access the TG110-AEX50N5LF schematic symbol, PCB footprint, and 3D model.
