For optimal performance, it is recommended to follow the recommended PCB layout and spacing guidelines provided by Halo Electronics Inc. Typically, a minimum of 1.5 mm spacing between the transformer and other components is recommended to minimize electromagnetic interference.
To ensure proper thermal management, it is recommended to provide adequate airflow around the transformer, and to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Additionally, the transformer should be mounted on a heat sink or a metal core PCB to dissipate heat efficiently.
The recommended operating frequency range for the TG110-E055N5RL transformer is 50 kHz to 500 kHz. Operating outside of this range may affect the transformer's performance and efficiency.
To minimize EMI and EMC issues, it is recommended to use a shielded transformer, and to follow proper PCB layout and design practices. Additionally, the use of EMI filters and shielding materials can help to reduce electromagnetic radiation.
To prevent damage, it is recommended to store the transformer in a dry, cool place, away from direct sunlight and moisture. The transformer should be handled with care to avoid mechanical stress, and should not be subjected to excessive vibration or shock.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TG110-E055N5RL Overview

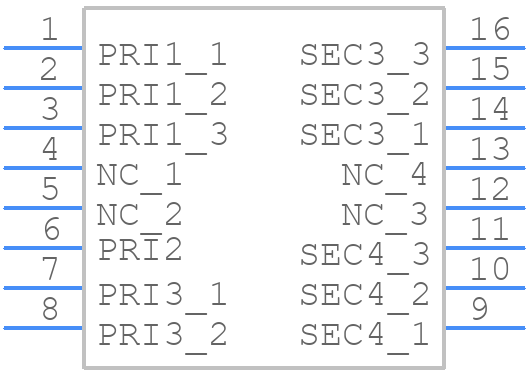

Use the download button to access the TG110-E055N5RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG110,
or try a keyword search, such as Pulse/Datacom Transformers
