The recommended PCB layout and land pattern can be found in the manufacturer's application note or layout guide, which provides detailed information on pad sizes, spacing, and thermal considerations to ensure optimal performance and reliability.
The TG110-RP06NJRL has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow the recommended thermal management guidelines in the datasheet or application note.
The recommended soldering profile for the TG110-RP06NJRL can be found in the manufacturer's soldering guide or application note, which provides detailed information on temperature, time, and other parameters to ensure reliable solder joints.
Yes, the TG110-RP06NJRL is a sensitive electronic component and requires proper ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and following proper handling and storage procedures to prevent damage.
The TG110-RP06NJRL has a moisture sensitivity level (MSL) of 3, which means it can be exposed to a maximum of 30°C/60% RH for 168 hours. To prevent damage, it's essential to follow the recommended storage and handling procedures, such as baking the component before reflow soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TG110-RP06NJRL Overview

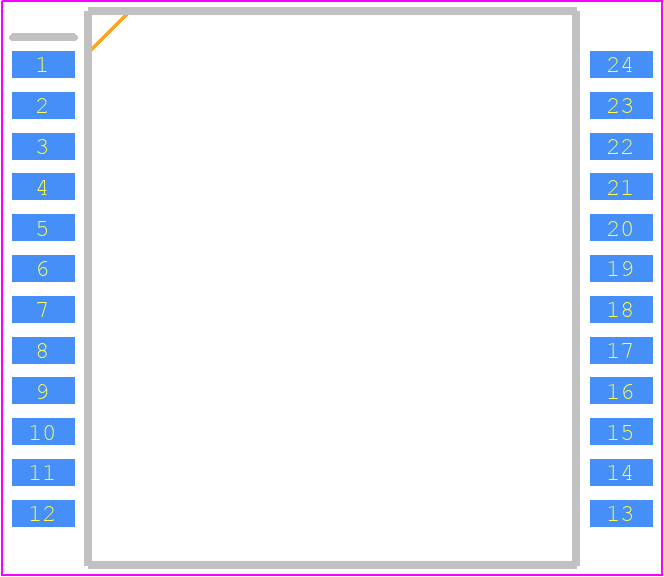

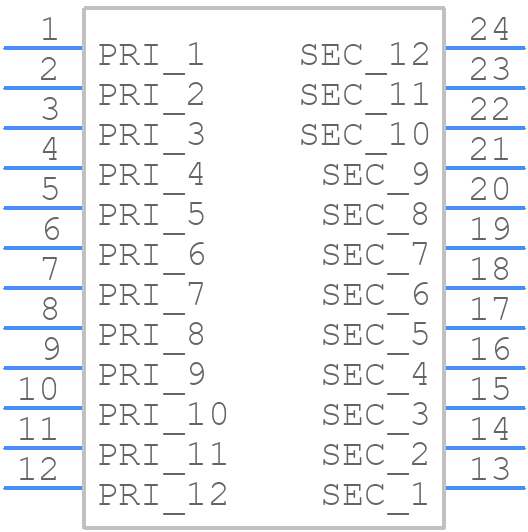

Use the download button to access the TG110-RP06NJRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG110,
or try a keyword search, such as Pulse/Datacom Transformers
