Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Transformer Type:
DATACOM TRANSFORMER
Turns Ratio (Np:Ns):
1CT:1CT;1CT:1CT
Width:
7.11 mm
TG110-S050N2RL Frequently Asked Questions (FAQs)
The recommended PCB layout and spacing for optimal performance can be found in the application note provided by Halo Electronics Inc. Generally, it's recommended to keep the transformer away from high-frequency components and to use a solid ground plane to reduce electromagnetic interference.
To ensure proper soldering and securing of the transformer to the PCB, follow the recommended soldering profile and use a solder with a high melting point. Additionally, use a mechanical fastener or adhesive to secure the transformer to the PCB to prevent vibration and mechanical stress.
The derating factors for temperature, voltage, and current can be found in the application note or by consulting with Halo Electronics Inc. directly. As a general rule, it's recommended to derate the transformer by 10-20% for temperature, 10-15% for voltage, and 5-10% for current to ensure reliable operation.
To handle EMI and EMC issues, ensure proper shielding, grounding, and filtering of the transformer and surrounding components. Additionally, follow the recommended layout and spacing guidelines to minimize electromagnetic radiation and susceptibility.
The recommended test and measurement procedures for the transformer can be found in the application note or by consulting with Halo Electronics Inc. directly. Typically, tests include measuring inductance, impedance, and voltage ratio, as well as performing hipot and insulation resistance tests.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TG110-S050N2RL Overview

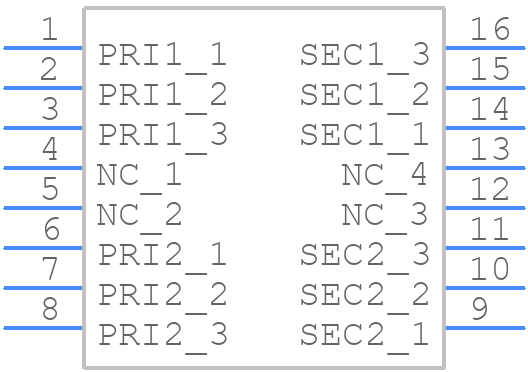

Use the download button to access the TG110-S050N2RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG110,
or try a keyword search, such as Pulse/Datacom Transformers
