For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and ensure a minimum of 2oz copper thickness. Additionally, a thermal pad on the bottom of the package should be connected to a thermal relief pattern on the PCB to facilitate heat dissipation.
To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended derating curves for voltage and current, and to implement adequate thermal management. Additionally, consider using a thermistor or thermocouple to monitor the device temperature and adjust the operating conditions accordingly.
For soldering, use a peak reflow temperature of 240°C with a dwell time of 30-60 seconds. For rework, use a hot air station with a maximum temperature of 220°C and a dwell time of 10-15 seconds. Ensure the component is handled by the edges to prevent damage.
To troubleshoot and debug issues, start by verifying the power supply and input signals. Use an oscilloscope to check for signal integrity and ensure the device is operating within the recommended specifications. Consult the datasheet and application notes for guidance on specific troubleshooting procedures.
Store the TG111-HP3NZRL in its original packaging or an anti-static bag in a dry, cool place. Handle the component by the edges to prevent damage, and avoid touching the pins or electrical contacts. Ensure the storage area is free from electrostatic discharge (ESD) and moisture.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TG111-HP3NZRL Overview

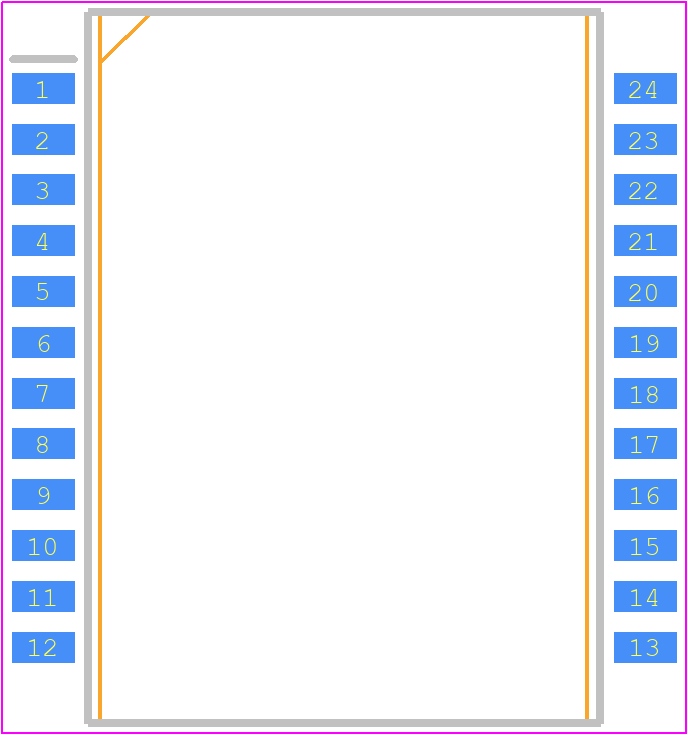

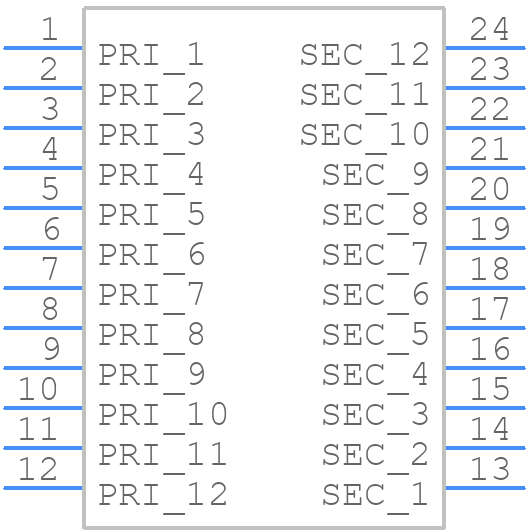

Use the download button to access the TG111-HP3NZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG111,
or try a keyword search, such as Pulse/Datacom Transformers
