TG111-MSCHPLF - Halo Electronics

Description: Audio Transformers / Signal Transformers Genesus -40/+85C Mini 1G For MiniPhy

Download TG111-MSCHPLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TG111-MSCHPLF - Halo Electronics - PCB symbol
click to zoom
PCB Footprints

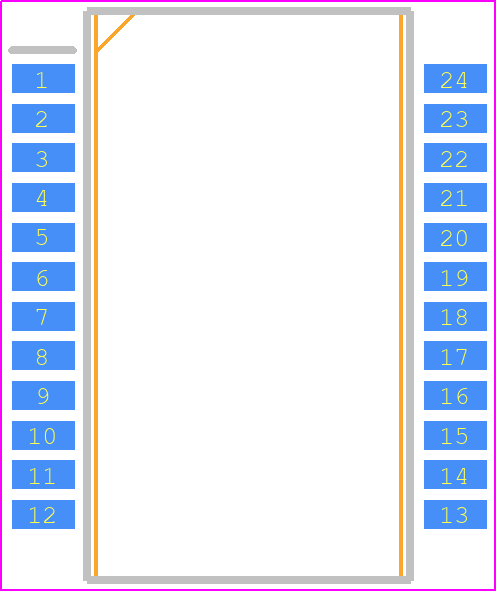

TG111-MSCHPLF - Halo Electronics PCB footprint - Small Outline Packages - Small Outline Packages - TG111
click to zoom
3D Models
TG111-MSCHPLF - Halo Electronics - 3D model - Small Outline Packages - TG111
click to zoom

TG111-MSCHPLF Details

  • Manufacturer Part Number:

    TG111-MSCHPLF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Halo Electronics Inc

  • YTEOL:

    6.65

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Application:

    ETHERNET

  • Approvals:

    UL

  • Height:

    8.64 mm

  • Isolation Voltage:

    1500 V

  • Length:

    14.22 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT

  • Width:

    7.62 mm

TG111-MSCHPLF Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. It's also important to keep the input and output traces separate to minimize crosstalk.
  • The TG111-MSCHPLF requires a bias voltage of 3.3V or 5V, depending on the application. Ensure the bias voltage is stable and within the recommended range to achieve optimal performance.
  • The TG111-MSCHPLF is rated for operation from -40°C to +85°C. However, it's recommended to derate the device for high-temperature applications to ensure reliability.
  • While the TG111-MSCHPLF is designed for high-frequency applications, its performance may degrade above 1 GHz. It's recommended to consult with Halo Electronics Inc or perform thorough testing to ensure the device meets the specific application requirements.
  • A peak reflow temperature of 260°C with a dwell time of 20-30 seconds is recommended. Ensure the soldering process is within the recommended specifications to prevent damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TG111-MSCHPLF Overview

Use the download button to access the TG111-MSCHPLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG111, or try a keyword search, such as Pulse/Datacom Transformers
