TG43-1406NRL - Halo Electronics

Description: Audio Transformers / Signal Transformers 10BASE-T SMD 1-Port w/CMR Choke 1:1.41

Download TG43-1406NRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

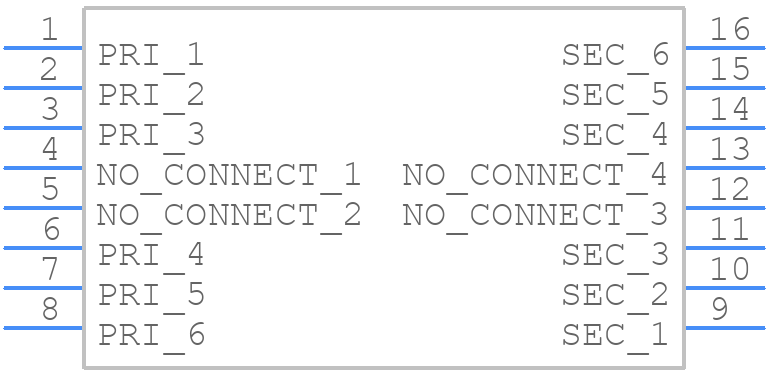

TG43-1406NRL - Halo Electronics - PCB symbol
click to zoom
PCB Footprints
TG43-1406NRL - Halo Electronics PCB footprint - Small Outline Packages - Small Outline Packages - N2 Package
click to zoom
3D Models
TG43-1406NRL - Halo Electronics - 3D model - Small Outline Packages - N2 Package
click to zoom

TG43-1406NRL Details

  • Manufacturer Part Number:

    TG43-1406NRL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Halo Electronics Inc

  • YTEOL:

    3

  • Additional Feature:

    HIEGHT DIM INCLUDES TERMINALS ALSO

  • Application:

    10 BASE-T

  • Approvals:

    CUL; EN; UL

  • Height:

    5.08 mm

  • Isolation Voltage:

    1500 V

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    70 °C

  • Primary Inductance:

    140 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT; 1CT:1.41CT

  • Width:

    7.11 mm

TG43-1406NRL Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be obtained by contacting Halo Electronics Inc's technical support team or by referring to the manufacturer's application notes. A well-designed PCB layout is crucial for optimal performance, and Halo Electronics Inc can provide guidance on the recommended layout and land pattern for the TG43-1406NRL.
  • The TG43-1406NRL is designed to operate at high frequencies, but its behavior under high-frequency switching conditions may not be fully characterized in the datasheet. Engineers can contact Halo Electronics Inc's technical support team to obtain more information on the component's behavior under high-frequency switching conditions or to request application notes and guidance on how to optimize the design for high-frequency switching applications.
  • Thermal management is critical for the reliable operation of the TG43-1406NRL. Engineers should consider the component's thermal characteristics, such as its thermal resistance and power dissipation, and design a suitable thermal management system to ensure the component operates within its recommended temperature range. Halo Electronics Inc can provide guidance on thermal management considerations and recommendations for the TG43-1406NRL.
  • Yes, the TG43-1406NRL may have specific EMI/EMC considerations that are not fully addressed in the datasheet. Engineers should consult with Halo Electronics Inc's technical support team to understand the component's EMI/EMC characteristics and to obtain guidance on how to design a system that meets EMI/EMC regulatory requirements.
  • Proper storage and handling procedures are essential to prevent damage to the TG43-1406NRL. Engineers should follow Halo Electronics Inc's recommended storage and handling procedures, which can be obtained by contacting the manufacturer's technical support team or by referring to the manufacturer's application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TG43-1406NRL Overview

Use the download button to access the TG43-1406NRL schematic symbol, PCB footprint, and 3D model.
