- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TGA2512-1-SM
- Part Number TGA2512-1-SM
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 4*4*0.9mm
- Released Date Jul 31, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TGA2512-1-SM Details
-
Manufacturer Part Number:
TGA2512-1-SM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
4 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, QFN-12
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Construction:
COMPONENT
-
Gain:
22 dB
-
Input Power-Max (CW):
21 dBm
-
Mounting Feature:
SURFACE MOUNT
TGA2512-1-SM Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent overheating.
-
Qorvo provides a design guide and simulation models to help optimize the biasing and matching networks for specific applications. Engineers can use tools like ADS or AWR to simulate and optimize the design.
-
Qorvo performs a range of reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing, to ensure the device meets the required standards. Details can be found in the Qorvo reliability report.
-
Qorvo provides a troubleshooting guide and application notes that cover common issues and their solutions. Engineers can also contact Qorvo's technical support team for assistance.
-
The TGA2512-1-SM is subject to export control regulations, and customers must comply with applicable laws and regulations. Qorvo provides information on export control and regulatory compliance on their website.
Trust Checks
Community Provided
System Verified
Community Approved
TGA2512-1-SM Overview

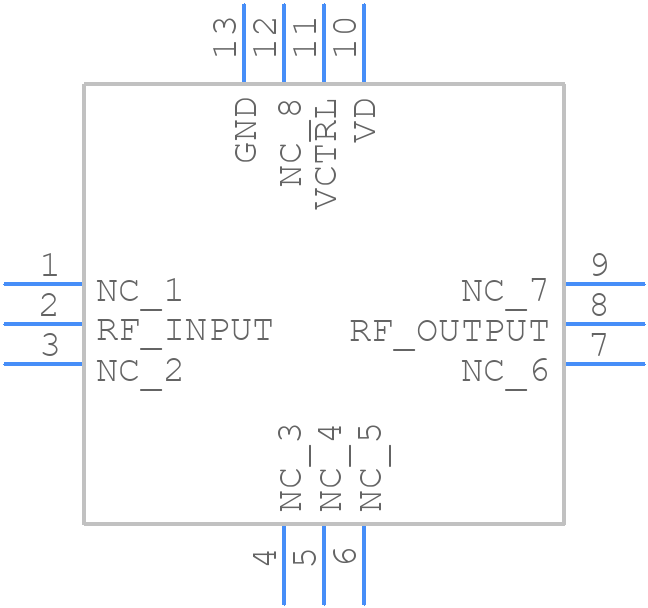

Use the download button to access the TGA2512-1-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGA25,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
