Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent overheating.
Qorvo offers a free online tool, the Qorvo GaN Design Hub, which provides a biasing and matching network design wizard. This tool helps optimize the design for specific frequency bands, power levels, and impedance matching requirements.
Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering and assembly. Additionally, Qorvo provides a soldering guide in their application note AN-1235, which outlines specific guidelines for the TGA2533-SM.
Qorvo recommends following the CISPR 22 and CISPR 25 standards for EMC and EMI reduction. Additionally, Qorvo provides guidelines for PCB layout, shielding, and filtering in their application note AN-1236.
The TGA2533-SM has undergone rigorous qualification tests, including temperature cycling, humidity testing, and mechanical stress testing. Qorvo provides a detailed reliability report in their application note AN-1237, which outlines the test results and methodologies used.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGA2533-SM Overview

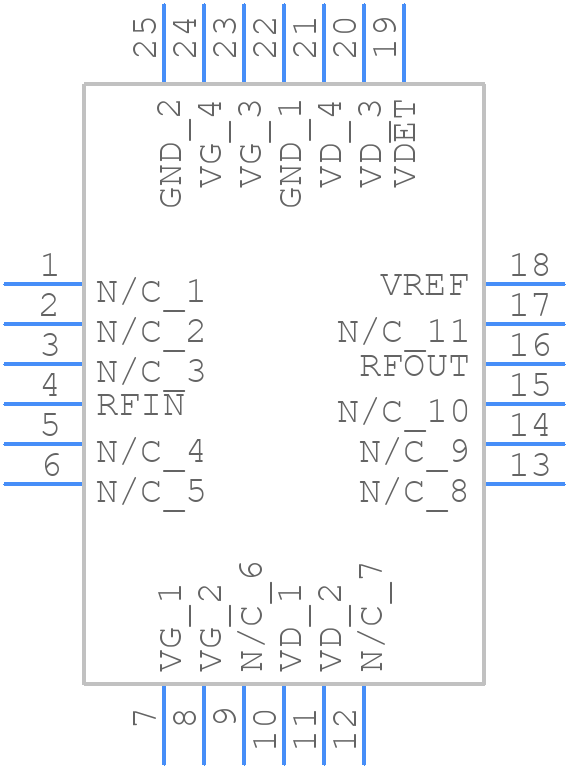

Use the download button to access the TGA2533-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGA25,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
