- Stock & Prices $ Price & Stock for TGA2535-SM
- Part Number TGA2535-SM
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - TGA2535-SM
- Released Date Aug 28, 2023
- Last Modified Date Aug 29, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
TGA2535-SM Details
-
Manufacturer Part Number:
TGA2535-SM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
5 X 5 MM, 0.85 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, QFN-24
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
YTEOL:
7.31
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
25 dB
-
Input Power-Max (CW):
27 dBm
TGA2535-SM Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent thermal shutdown.
-
Qorvo provides a biasing and matching network design guide in their application note AN-1235. Additionally, Qorvo's GaN device modeling software, Qorvo GaN Model, can be used to simulate and optimize the biasing and matching network for specific applications.
-
Qorvo provides a recommended assembly and soldering procedure guide in their application note AN-1236. It's essential to follow these guidelines to prevent damage to the device during assembly and to ensure reliable operation.
-
Qorvo provides a troubleshooting guide in their application note AN-1237. Additionally, Qorvo's technical support team is available to assist with troubleshooting and provide guidance on resolving common issues.
-
Qorvo provides information on environmental and reliability testing procedures in their reliability report. The report outlines the testing procedures and results for the TGA2535-SM, including temperature cycling, humidity, and vibration testing.
Trust Checks
Community Provided
System Verified
Community Approved
TGA2535-SM Overview

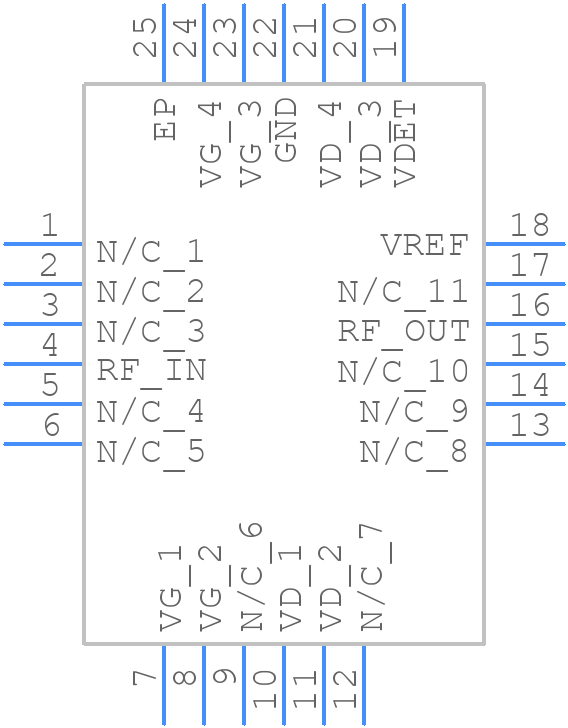

Use the download button to access the TGA2535-SM schematic symbol, PCB footprint, and 3D model.
