- Part Number TGA2611-SM
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 20QFN
- Released Date Sep 29, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TGA2611-SM Details
-
Manufacturer Part Number:
TGA2611-SM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-20
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
22 dB
-
Input Power-Max (CW):
30 dBm
TGA2611-SM Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent overheating.
-
Qorvo provides a design guide and simulation models to help optimize the biasing and matching networks for specific applications. Engineers can use tools like Genesys or ADS to simulate and optimize the design.
-
Qorvo provides a soldering and assembly guide in their application note AN-1235. It's essential to follow these guidelines to ensure reliable assembly and to prevent damage to the device.
-
Qorvo provides a troubleshooting guide in their application note AN-1236. Engineers can also contact Qorvo's technical support team for assistance with troubleshooting and design optimization.
-
Qorvo provides information on environmental and reliability testing procedures in their reliability report. Engineers can also contact Qorvo's technical support team for more information on testing and qualification procedures.
Trust Checks
Community Provided
System Verified
Community Approved
TGA2611-SM Overview

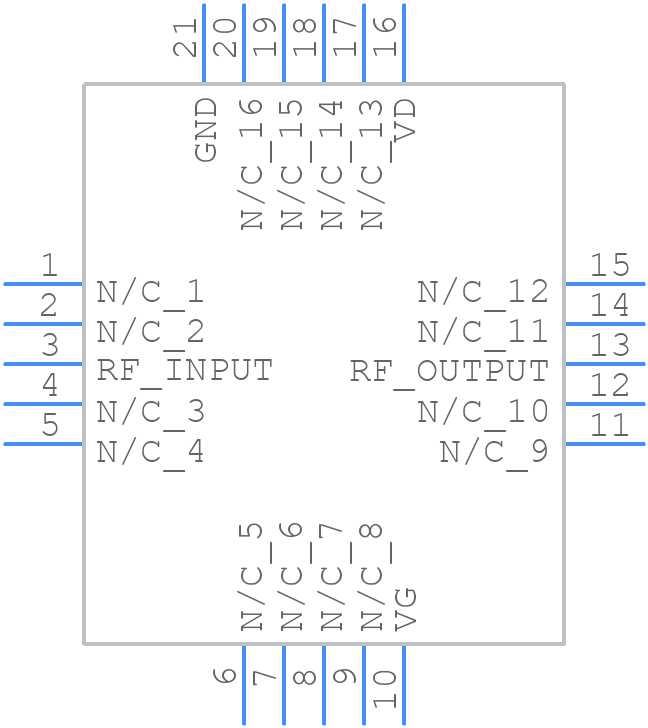

Use the download button to access the TGA2611-SM schematic symbol, PCB footprint, and 3D model.
