Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
Use Qorvo's application note AN-1234 for guidance on designing input and output matching networks. Optimize the networks using simulation tools like ADS or AWR Microwave Office.
Follow Qorvo's recommended soldering profile and assembly guidelines in the datasheet. Use a nitrogen reflow oven and a solder paste with a melting point above 217°C.
Use a combination of visual inspection, signal integrity analysis, and debugging tools like oscilloscopes and spectrum analyzers. Consult Qorvo's application notes and technical support resources for guidance.
The TGF2978-SM has undergone rigorous qualification tests, including temperature cycling, humidity testing, and electrical overstress testing. Refer to Qorvo's reliability report for detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGF2978-SM Overview

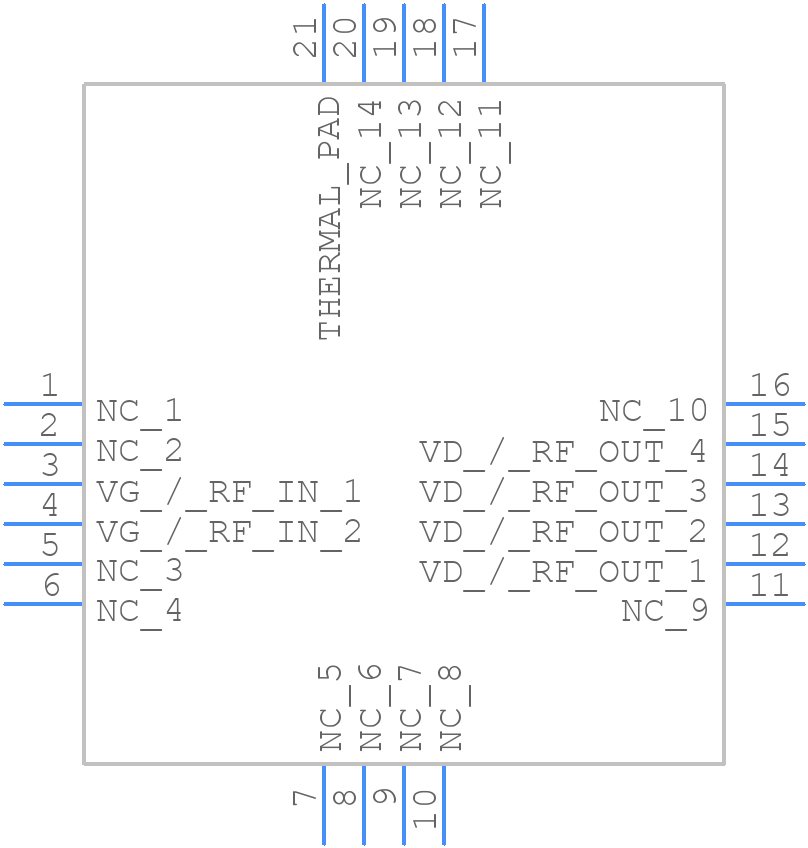

Use the download button to access the TGF2978-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGF29,
or try a keyword search, such as RF Power Field-Effect Transistors
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
