Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a thermal plane on the PCB.
Use Qorvo's application note AN-1234 for guidance on designing input and output matching networks. The note provides a step-by-step process for optimizing the matching networks for maximum gain and efficiency.
The recommended biasing scheme is a voltage-controlled current source. Set the gate voltage (Vgs) between -2.5V to -0.5V for optimal performance. Consult the datasheet for specific biasing requirements.
Monitor the device's voltage, current, and power dissipation to ensure operation within the SOA. Use the datasheet's SOA graph to determine the maximum allowable voltage, current, and power dissipation.
Handle the device in an ESD-controlled environment, and use wrist straps or mats to prevent static discharge. Use ESD-protective packaging and follow Qorvo's ESD handling guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGF2979-SM Overview

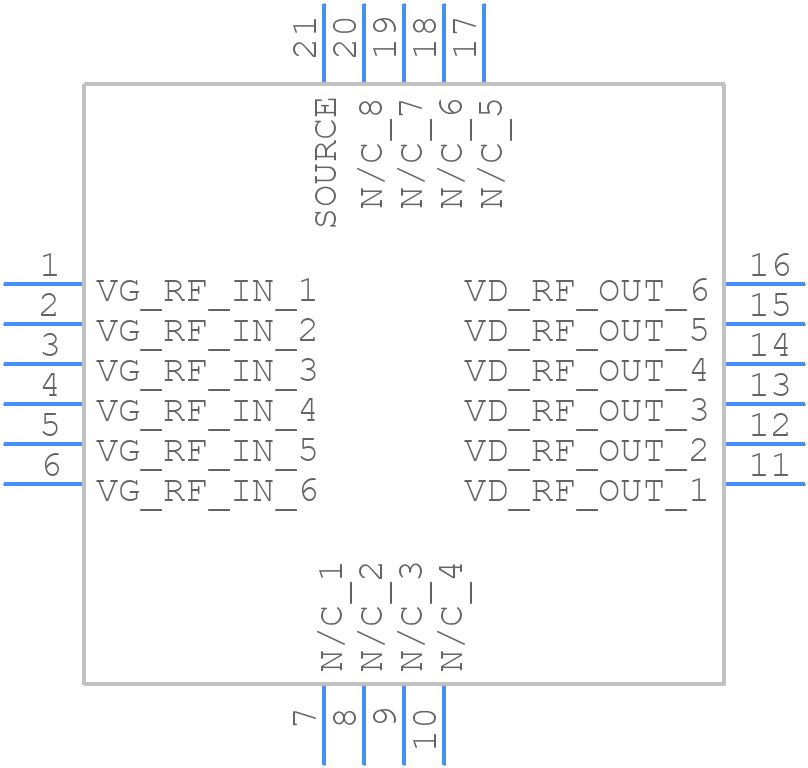

Use the download button to access the TGF2979-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGF29,
or try a keyword search, such as RF Power Field-Effect Transistors
