Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
Qorvo offers a free online tool called the Qorvo GaN Device Model and S-Parameter Library, which provides a comprehensive set of device models and S-parameters for the TGF3021-SM. This tool can be used to simulate and optimize the biasing and matching networks for specific applications.
Qorvo performs a range of reliability and qualification tests on the TGF3021-SM, including high-temperature operating life (HTOL), high-temperature storage life (HTSL), and electrostatic discharge (ESD) testing, among others. These tests are described in detail in the Qorvo Reliability Report, which is available upon request.
While the TGF3021-SM is primarily designed for RF applications, its high-power and high-frequency capabilities make it suitable for other high-power applications such as power supplies or motor control. However, Qorvo recommends consulting with their application engineers to ensure that the device is properly configured and biased for the specific application.
The lead time and minimum order quantity for the TGF3021-SM vary depending on the region and distribution channel. Qorvo recommends contacting their authorized distributors or sales representatives for the most up-to-date information on lead times and minimum order quantities.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGF3021-SM Overview

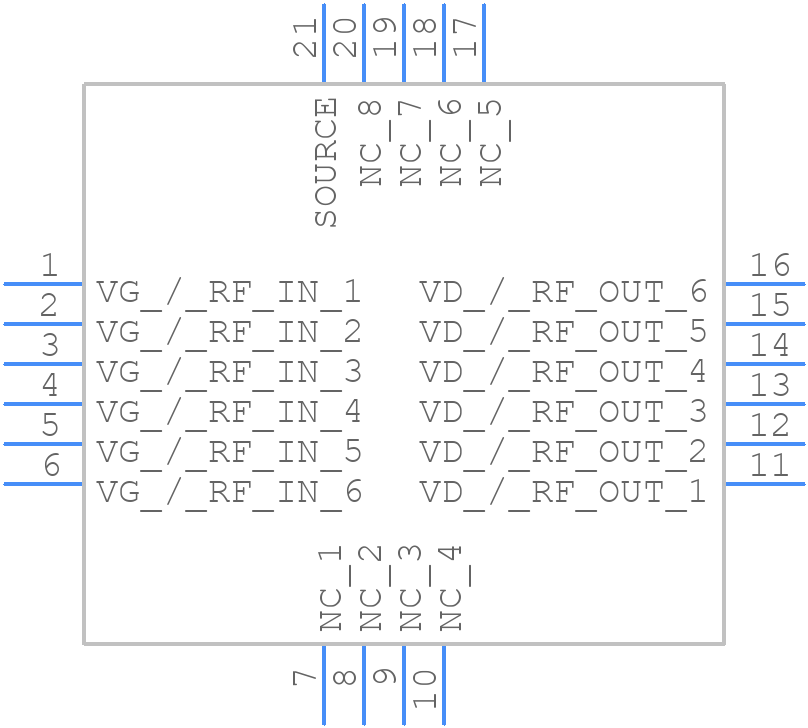

Use the download button to access the TGF3021-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGF30,
or try a keyword search, such as RF Power Field-Effect Transistors
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
