Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Transformer Type:
POWER TRANSFORMER
Turns Ratio (Np:Ns):
1:1:1.3:1.3
Width:
7.11 mm
TGM-040P3RL Frequently Asked Questions (FAQs)
For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and ensure a minimum of 1 oz copper thickness. Thermal management is crucial; use a thermal pad or thermal tape to attach the module to a heat sink or metal plate.
To ensure power integrity, use a low-ESR capacitor (e.g., 10uF) close to the module's power pins. Additionally, use a 1-2 ohm resistor in series with the power supply to reduce noise and ringing.
For optimal performance, the recommended input impedance is 50 ohms, and the output impedance should be matched to the load impedance to minimize reflections and ensure maximum power transfer.
To troubleshoot, check for proper power supply decoupling, ensure the module is properly soldered, and verify the input signal quality. Also, check for thermal issues, and ensure the module is operated within the recommended temperature range.
Yes, the TGM-040P3RL is an ESD-sensitive device. Handle the module by the edges, use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the module's pins or components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGM-040P3RL Overview

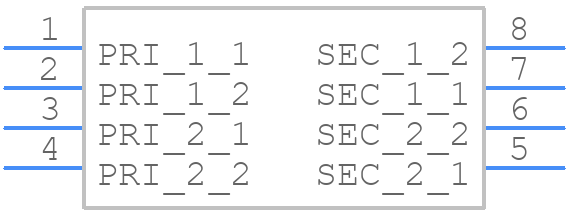

Use the download button to access the TGM-040P3RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGM-0,
or try a keyword search, such as Power/Mains Transformers
