TGM-240NSLF - Halo Electronics

Description: Pulse Transformers ISO MOD SMD GullWing 1.5kVrms 0.8Ohm 6pin

Download TGM-240NSLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

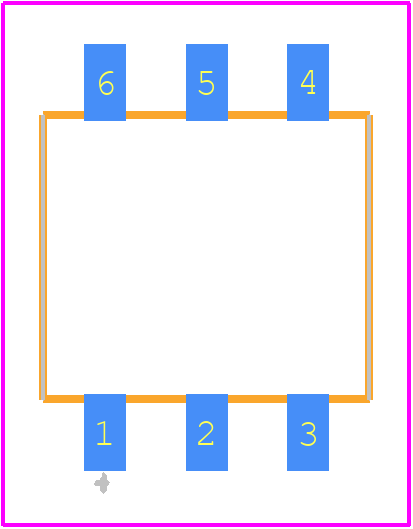

TGM-240NSLF - Halo Electronics PCB footprint - Other - Other - TGM-240NSLF-2
click to zoom
3D Models
TGM-240NSLF - Halo Electronics  - 3D model - Other - TGM-240NSLF-2
click to zoom

TGM-240NSLF Details

  • Manufacturer Part Number:

    TGM-240NSLF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Halo Electronics Inc

  • YTEOL:

    6.62

  • Application:

    GENERAL PURPOSE

  • Approvals:

    UL

  • ET Product-Min:

    11 V-us

  • Height:

    5.08 mm

  • Isolation Voltage:

    1500 V

  • Length:

    8.13 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Primary Inductance:

    960 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    3CT:4CT

  • Width:

    7.11 mm

TGM-240NSLF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal relief pattern is recommended. Ensure a minimum of 1mm clearance around the component for heat dissipation.
  • Implement a thermal management system, such as a heat sink or thermal pad, to maintain a junction temperature below 125°C. Monitor the device's temperature using the thermal sense pin.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling. Place the capacitor as close to the device as possible.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency components, and ensure proper grounding and decoupling. Follow the recommended PCB layout and component placement guidelines.
  • The device can withstand a maximum voltage transient of 10% above the recommended input voltage for a duration of 100ms. Ensure proper input filtering and protection to prevent damage.
