For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, ensure a minimum of 10mm clearance around the component for airflow and heat dissipation.
To ensure reliability, follow the recommended storage and handling procedures, avoid exceeding the maximum ratings, and ensure proper soldering and cleaning processes. Additionally, implement a robust testing and inspection process to detect any defects or anomalies.
The TGM-250NSLF is an ESD-sensitive device. Handle the component in an ESD-controlled environment, and ensure all personnel handling the component wear ESD-protective wrist straps or use ESD-protective mats. Avoid touching the component's pins or leads, and use ESD-protective packaging and storage materials.
While the TGM-250NSLF is designed to be robust, it's essential to evaluate the component's performance in your specific application. Consider implementing additional mechanical support or potting the component to ensure reliability in high-vibration or high-shock environments.
Perform visual inspections for defects or damage, and conduct electrical testing to ensure the component meets the specified parameters. Use industry-standard testing methods, such as ICT or flying probe testing, and consider implementing automated optical inspection (AOI) for high-volume production.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TGM-250NSLF Overview

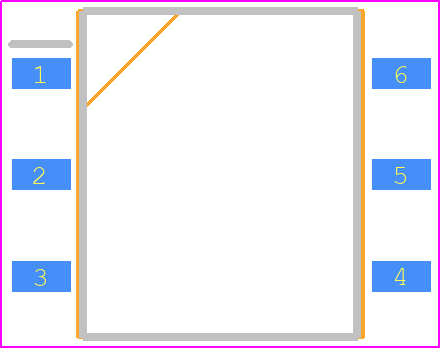

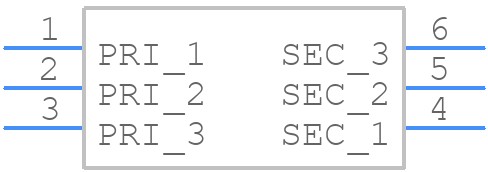

Use the download button to access the TGM-250NSLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGM-2,
or try a keyword search, such as Pulse/Datacom Transformers
