The recommended PCB layout and land pattern can be found in the application note provided by Halo Electronics Inc. It's essential to follow the recommended layout to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
The TGMR-1440V6LF is designed to minimize high-frequency noise and EMI. It features a shielded construction and a low-profile design, which helps to reduce radiation and improve electromagnetic compatibility. Additionally, the component's differential architecture helps to reject common-mode noise.
The TGMR-1440V6LF is rated for operation from -40°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and the operating temperature range may affect the component's reliability and lifespan.
The TGMR-1440V6LF is designed to withstand moderate vibration and shock. However, it's essential to consult with Halo Electronics Inc. or a qualified engineer to determine the component's suitability for specific high-vibration or high-shock applications.
The TGMR-1440V6LF should be stored in a dry, cool place, away from direct sunlight and moisture. It's essential to handle the component by the edges to prevent damage to the pins or the package. Electrostatic discharge (ESD) precautions should also be taken when handling the component.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGMR-1440V6LF Overview

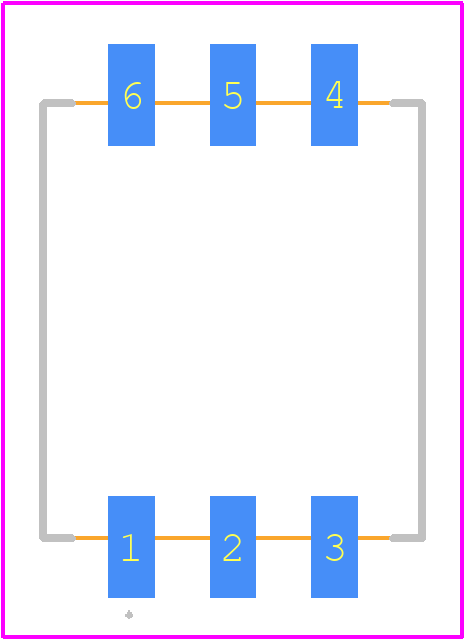

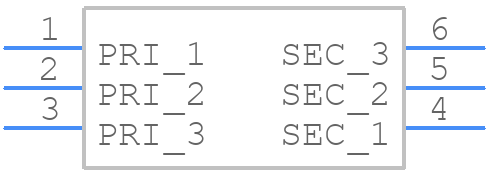

Use the download button to access the TGMR-1440V6LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGMR-,
or try a keyword search, such as Pulse/Datacom Transformers
