TGP2108-SM - Qorvo

Description: Phase Detectors / Shifters 2.5-4GHz 6-Bit LSB 5.625 Deg IL 5dB

Download TGP2108-SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

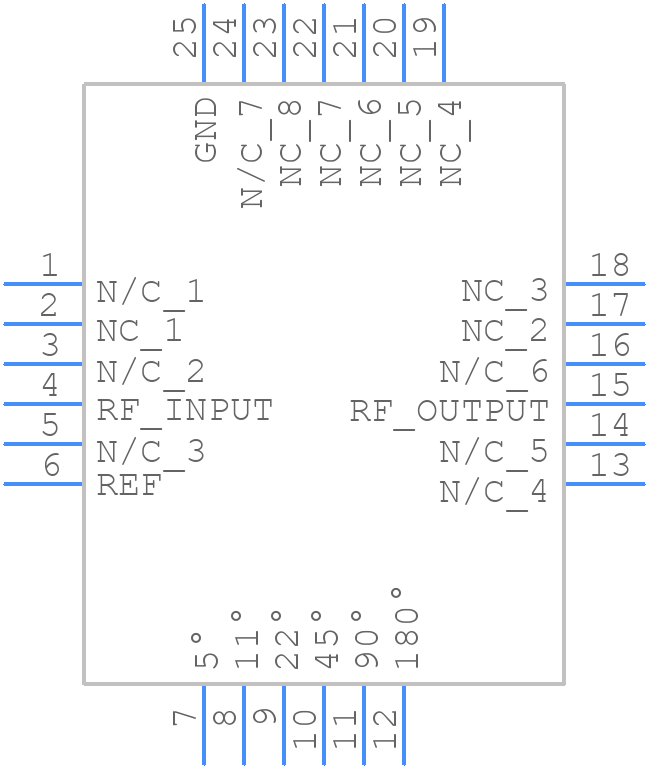

Symbol
TGP2108-SM - Qorvo - PCB symbol
click to zoom
PCB Footprints
TGP2108-SM - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TGP2108-SM
click to zoom
3D Models
TGP2108-SM - Qorvo - 3D model - Quad Flat No-Lead - TGP2108-SM
click to zoom

TGP2108-SM Details

  • Manufacturer Part Number:

    TGP2108-SM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-04-14

  • Manufacturer:

    Qorvo

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    8.5 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.2SQ,25

  • Phase Shift-Max:

    360 deg

  • Phase Shift-Min:

    5 deg

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    COAXIAL MECHANICAL PHASE SHIFTER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.43

TGP2108-SM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the RF traces. A via-stitched ground plane is also recommended to reduce electromagnetic interference.
  • The optimal bias point for the TGP2108-SM is typically around Vd=3.5V and Id=100mA. However, the optimal bias point may vary depending on the specific application and operating conditions. It is recommended to perform load-pull characterization to determine the optimal bias point for maximum efficiency.
  • The maximum operating temperature of the TGP2108-SM is 150°C. However, it is recommended to operate the device at a temperature below 125°C to ensure reliable operation and to prevent thermal runaway.
  • Thermal runaway can be prevented by ensuring good thermal design, such as using a heat sink and thermal interface material, and by monitoring the device temperature and reducing the power dissipation if it exceeds a certain threshold.
  • The TGP2108-SM is a sensitive device and requires proper ESD protection to prevent damage. It is recommended to use a combination of ESD protection devices, such as TVS diodes and ESD filters, to protect the device from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TGP2108-SM Overview

Use the download button to access the TGP2108-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGP21, or try a keyword search, such as RF/Microwave Phase Shifters

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
