TH58BVG3S0HTA00 - Toshiba

Description: NAND Flash 8Gb 24nm SLC NAND (EEPROM)

Download TH58BVG3S0HTA00 Model

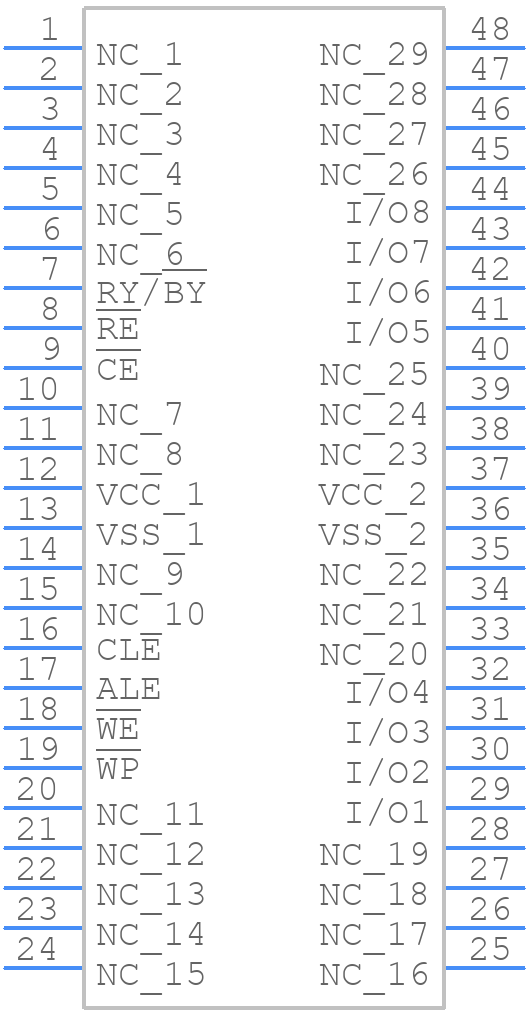

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

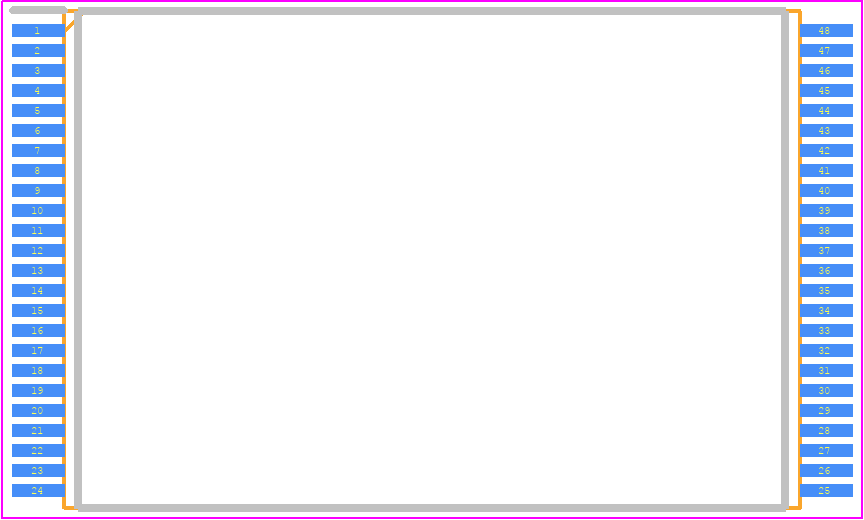

TH58BVG3S0HTA00 - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - tsop I 48-P-1220-0.50
click to zoom
3D Models
TH58BVG3S0HTA00 - Toshiba  - 3D model - Small Outline Packages - tsop I 48-P-1220-0.50
click to zoom

TH58BVG3S0HTA00 Details

  • Manufacturer Part Number:

    TH58BVG3S0HTA00

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    TSOP1

  • Package Description:

    TSOP1-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Toshiba America Electronic Components

  • Access Time-Max:

    25 ns

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    8589934592 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    1073741824 words

  • Number of Words Code:

    1000000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    1GX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.000025 ms

  • Write Protection:

    HARDWARE

TH58BVG3S0HTA00 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TH58BVG3S0HTA00 is -40°C to 85°C.
  • Toshiba recommends following the standard reflow soldering profile and using a soldering iron with a temperature of 350°C or less to avoid damaging the device.
  • The TH58BVG3S0HTA00 has a maximum of 100,000 erase cycles per block, and 10,000 erase cycles per chip.
  • Toshiba recommends using a voltage detector and a capacitor to ensure that the device has enough power to complete any write operations in progress during a power failure.
  • The typical access time for the TH58BVG3S0HTA00 is 25ns.
