TH58NVG4S0FTA20 - Toshiba

Description: NAND Flash 3.3V 16Gb 32nm SLC NAND (EEPROM)

Download TH58NVG4S0FTA20 Model

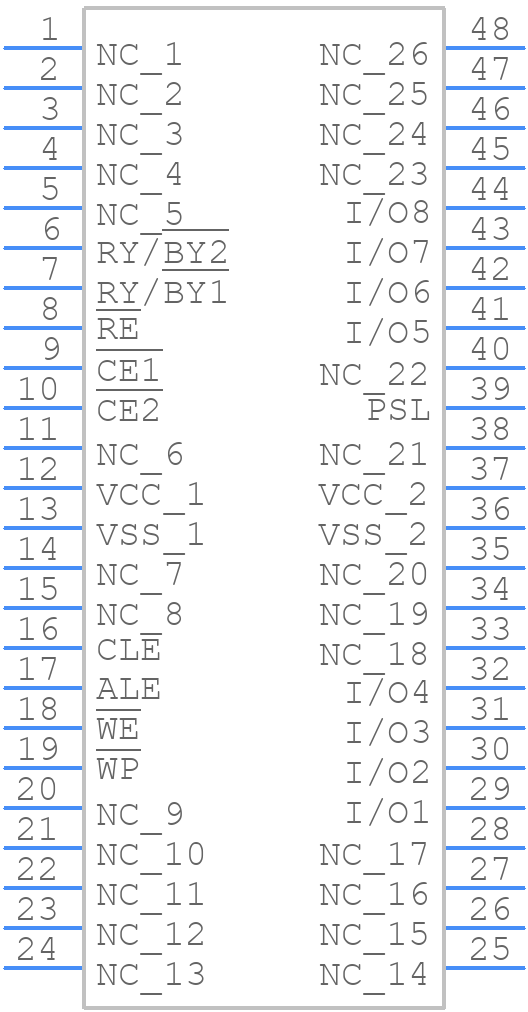

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

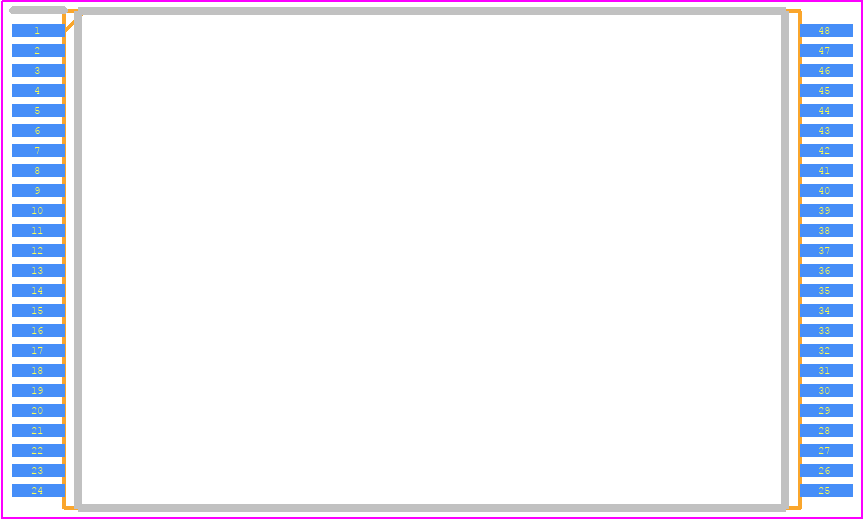

TH58NVG4S0FTA20 - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - tsop I 48-P-1220-0.50
click to zoom
3D Models
TH58NVG4S0FTA20 - Toshiba  - 3D model - Small Outline Packages - tsop I 48-P-1220-0.50
click to zoom

TH58NVG4S0FTA20 Details

  • Manufacturer Part Number:

    TH58NVG4S0FTA20

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    TSOP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    2

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    17179869184 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    2147483648 words

  • Number of Words Code:

    2000000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    2GX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Protection:

    HARDWARE

TH58NVG4S0FTA20 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TH58NVG4S0FTA20 is -40°C to 85°C.
  • The TH58NVG4S0FTA20 has a built-in bad block management system. The device automatically detects and replaces bad blocks with spare blocks. However, it is recommended to implement additional error correction and bad block management mechanisms in the system design to ensure data integrity.
  • The TH58NVG4S0FTA20 has a maximum of 3,000 program/erase cycles per block. It is recommended to implement wear leveling and garbage collection mechanisms to ensure even wear and extend the lifespan of the device.
  • The TH58NVG4S0FTA20 requires a power-on reset sequence to ensure proper initialization. The recommended power-on reset sequence is: VCC = 3.3V, then CE# = Low, then WE# = High, then RE# = Low. For power-down, the sequence is: RE# = High, then WE# = Low, then CE# = High, then VCC = 0V.
  • The recommended timing for the command and address cycles for the TH58NVG4S0FTA20 is: tRC = 50ns, tWC = 50ns, tR = 20ns, tWP = 20ns. It is recommended to consult the datasheet for detailed timing diagrams and specifications.
