Part Image

THAT2162Q16-U - THAT CORPORATION

Description: •Two Independent Channels •Wide Dynamic Range: >118 dB •Wide Gain Range: >130 dB •Exponential (dB) Gain Control •Low Distortion: 0.05% typ. •Wide Supply Voltage Range: ±2.25V ~ ±16V •Low Supply Current: 5.2 mA typ. (±15V) 3 mA typ. (±5V) •Dual Control Ports (pos/neg) •Low Cost •Small Package (16-pin QSOP)

Download THAT2162Q16-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

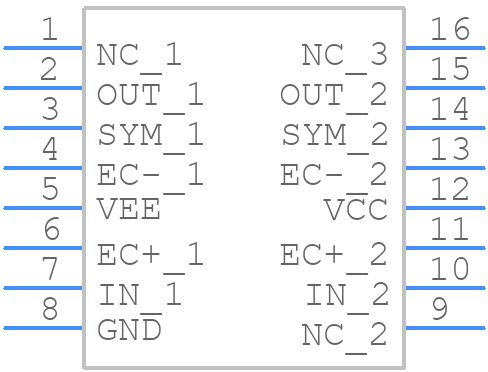

THAT2162Q16-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints
THAT2162Q16-U - THAT CORPORATION PCB footprint - Small Outline Packages - Small Outline Packages - THAT 2162s
click to zoom
3D Models
THAT2162Q16-U - THAT CORPORATION - 3D model - Small Outline Packages - THAT 2162s
click to zoom

THAT2162Q16-U Details

  • Manufacturer Part Number:

    THAT2162Q16-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    THAT Corporation

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

THAT2162Q16-U Overview

Use the download button to access the THAT2162Q16-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THAT2, or try a keyword search, such as Other Signal Circuits
