A good PCB layout for the THAT2180BL08-U involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source between 4.5V and 5.5V, and the VEE pin to a stable voltage source between -4.5V and -5.5V. The voltage difference between VCC and VEE should be between 9V and 11V.
The recommended input impedance for the THAT2180BL08-U is between 1kΩ and 10kΩ. This ensures optimal signal-to-noise ratio and distortion performance.
While the THAT2180BL08-U is typically used in a dual-supply configuration, it can be used in a single-supply configuration with some limitations. However, this may affect the device's performance, and additional circuitry may be required to achieve the desired output voltage swing.
To protect the THAT2180BL08-U from ESD damage, use ESD-sensitive handling procedures, and consider adding ESD protection devices such as TVS diodes or ESD protection arrays to the input and output pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THAT2180BL08-U Overview

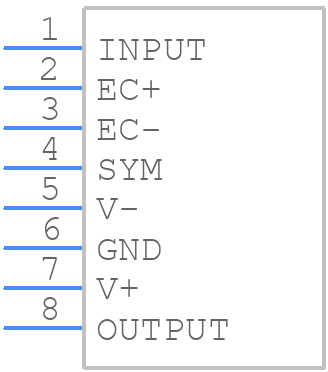

Use the download button to access the THAT2180BL08-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THAT2,
or try a keyword search, such as Other Amplifiers
