THAT4301P20-I - THAT CORPORATION

Description: ANALOG PROCESSOR ENGINE, 4301, DIP

Download THAT4301P20-I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

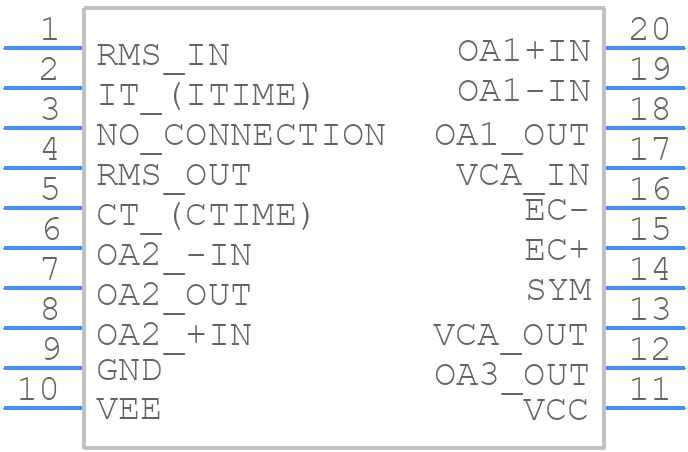

THAT4301P20-I - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints

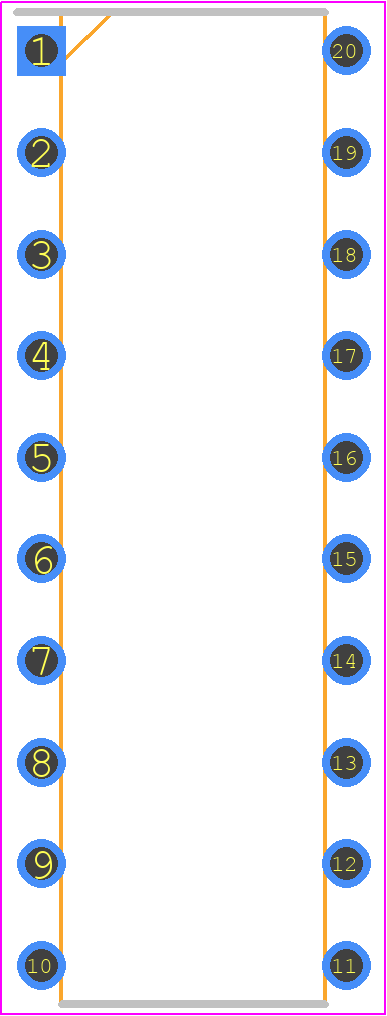

THAT4301P20-I - THAT CORPORATION PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - THAT4301_2021
click to zoom
3D Models
THAT4301P20-I - THAT CORPORATION - 3D model - Dual-In-Line Packages - THAT4301_2021
click to zoom

THAT4301P20-I Details

  • Manufacturer Part Number:

    THAT4301P20-I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    THAT Corporation

THAT4301P20-I Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the THAT4301P20-I is 4.5V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 10uF capacitor to ground. Also, connect the VEE pin to a stable -5V power supply, and decouple it with a 10uF capacitor to ground.
  • The maximum input signal level that the THAT4301P20-I can handle is ±2.5V peak-to-peak.
  • To optimize the THAT4301P20-I for low noise performance, use a low-noise power supply, decouple the power supply lines with 10uF capacitors, and keep the input signal lines as short as possible.
  • Yes, the THAT4301P20-I can be used in a differential amplifier configuration. In this configuration, the device can provide a high common-mode rejection ratio (CMRR) and a high differential gain.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THAT4301P20-I Overview

Use the download button to access the THAT4301P20-I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THAT4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
