THGJFGT1E45BAIP - KIOXIA Corporation

Description: Universal Flash Storage - UFS 256GB UFS v3.1 153-Pin BGA

Download THGJFGT1E45BAIP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

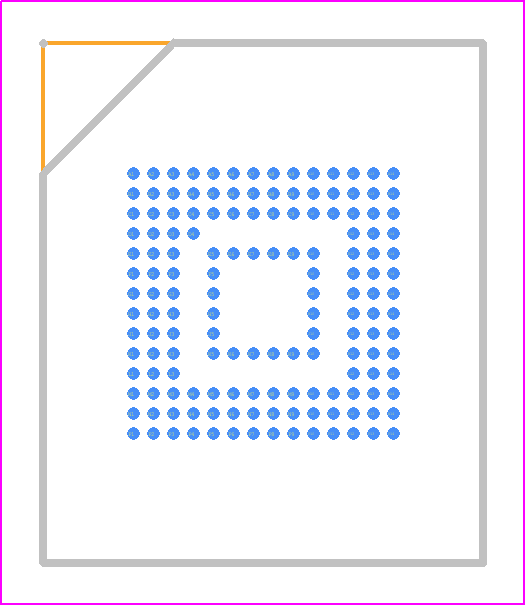

THGJFGT1E45BAIP - KIOXIA Corporation PCB footprint - BGA - BGA - P-WFBGA153-0.50-702 (11mm x 13mm, H0.8mm(max.)
click to zoom
3D Models
THGJFGT1E45BAIP - KIOXIA Corporation  - 3D model - BGA - P-WFBGA153-0.50-702 (11mm x 13mm, H0.8mm(max.)
click to zoom

THGJFGT1E45BAIP Details

  • Manufacturer Part Number:

    THGJFGT1E45BAIP

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-153

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    KIOXIA

  • YTEOL:

    7

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Memory Density:

    2199023255552 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    274877906944 words

  • Number of Words Code:

    256000000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Organization:

    256GX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Type:

    MLC NAND TYPE

  • Width:

    11 mm

THGJFGT1E45BAIP Frequently Asked Questions (FAQs)

  • The typical power consumption is around 2.3W (active) and 1.3W (idle), but this may vary depending on the workload and usage scenario.
  • The drive has a built-in thermal management system that throttles performance to prevent overheating. The exact temperature threshold is not publicly disclosed, but it's designed to ensure reliable operation within a typical operating temperature range of 0°C to 70°C.
  • The drive has a total bytes written (TBW) rating of 600TB, which means it can withstand a certain amount of write cycles before the drive's lifespan is exhausted. This rating is based on a typical usage scenario and may vary depending on the specific use case.
  • Yes, the drive supports TCG Opal 2.0 and IEEE 1667 encryption standards, which provide hardware-based encryption for secure data storage.
  • The drive is designed for client and enterprise applications, such as desktop and laptop computers, as well as data center and cloud storage environments. It's suitable for a wide range of workloads, including read-intensive and mixed workloads.
