Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 4 layers (2 oz copper) is recommended, with a thermal via array under the module.
Yes, the THN30-2411WI is designed to withstand high vibrations. It meets the IEC 60068-2-6 standard for vibration resistance, with a test duration of 1 hour per axis (x, y, z) at 2g amplitude and 10-2000 Hz frequency.
To ensure reliability in high-temperature applications, Traco Power recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow and a clean, dry environment to prevent moisture ingress.
Traco Power recommends using a fuse with a rating of 2-3 times the maximum input current (Iin) specified in the datasheet. For the THN30-2411WI, this would be approximately 6-9A.
Yes, the THN30-2411WI can be used in a redundant configuration. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THN30-2411WI Overview

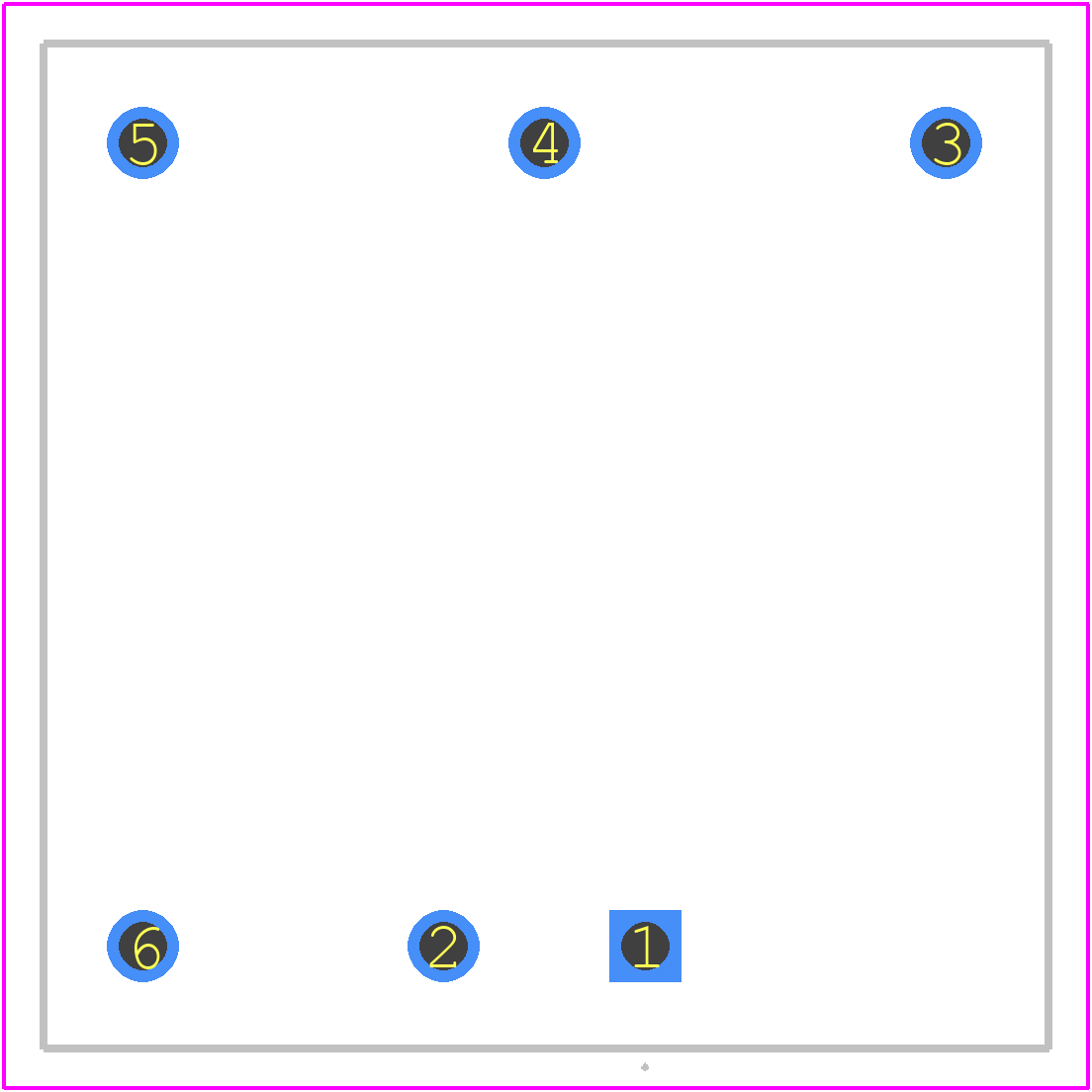

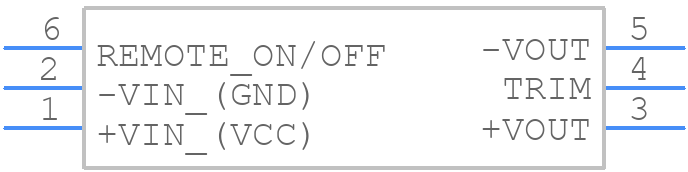

Use the download button to access the THN30-2411WI schematic symbol, PCB footprint, and 3D model.
