THS25100RJ - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Height .591 INCH | Product Length 51 MM | Product Length 2.008 INCH | Product Width 28 MM | Product Height 15 MM | Product Width 1.102 INCH | Electrical Characteristics: Resistance Class Up to 1kΩ | Operating Voltage 550 VDC | Passive Component Tolerance 5 PCT | Resistance Value 100 OHM | Power Rating 25 WATT | Mechanical Attachment: Panel Mount Feature Type Flange with Mounting Holes | Packaging Features: Packaging Method Loose Piece - Tr

Download THS25100RJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
THS25100RJ - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

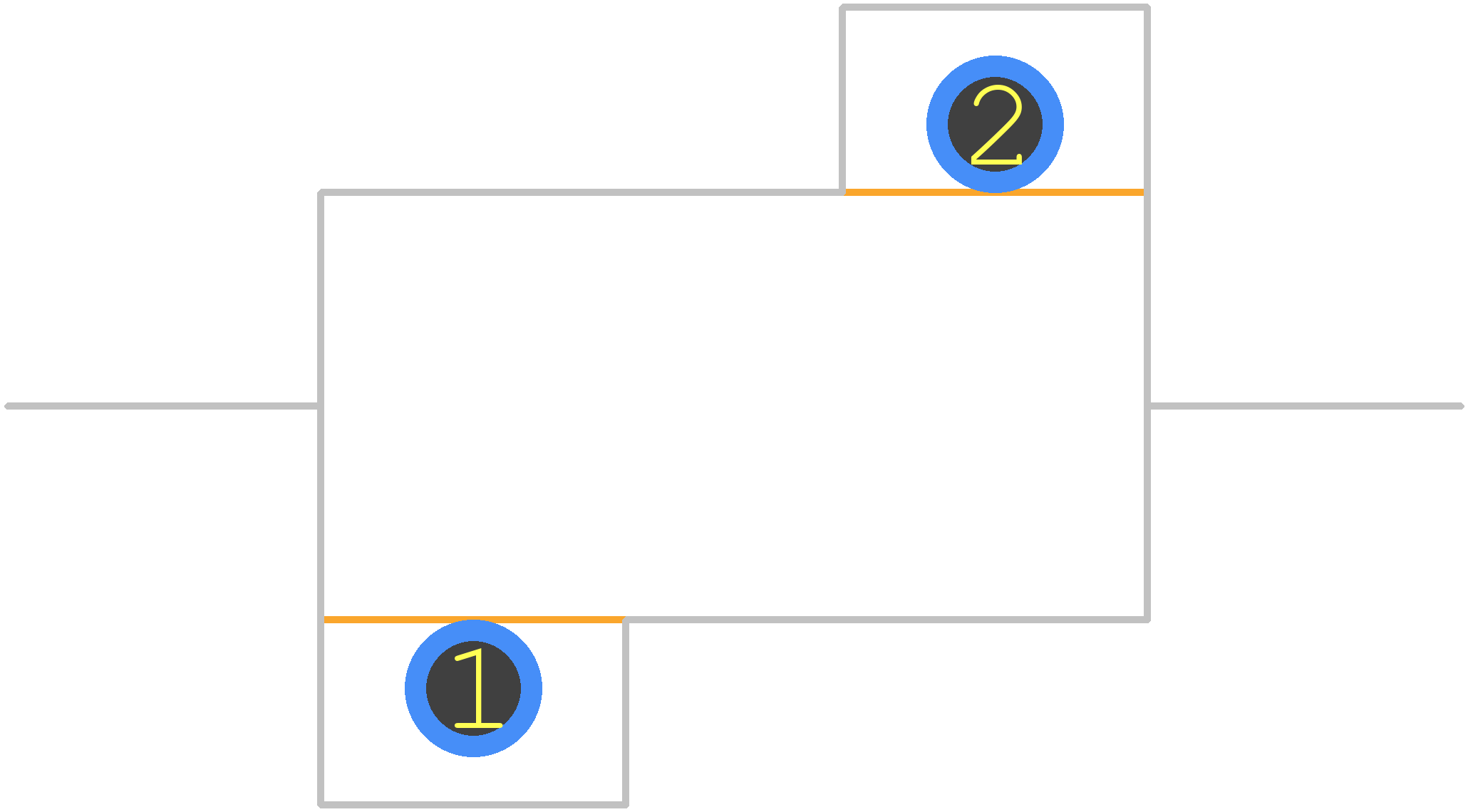

THS25100RJ - TE Connectivity PCB footprint - Other - Other - THS25100RJ
click to zoom

THS25100RJ Details

  • Manufacturer Part Number:

    THS25100RJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.29.00.00

  • Factory Lead Time:

    21 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    12

  • Construction:

    Rectangular

  • Mounting Feature:

    CHASSIS MOUNT

  • Number of Terminals:

    2

  • Package Height:

    15 mm

  • Package Length:

    29 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Chassis Mount

  • Package Width:

    28 mm

  • Packing Method:

    BULK, TRAY

  • Physical Dimension:

    51mm x 28mm x 15mm

  • Rated Power Dissipation (P):

    25 W

  • Resistance:

    100 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Shape:

    LUG

  • Tolerance:

    5%

  • Working Voltage:

    550 V

THS25100RJ Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and footprint in their application note AN-1045, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and signal integrity.
  • The THS25100RJ has a high power dissipation, so proper thermal management is crucial. Use a heat sink with a thermal interface material, and ensure good airflow around the device. The application note AN-1045 provides more detailed guidance on thermal management.
  • The THS25100RJ has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure that the device operates within these temperature limits to prevent damage or malfunction.
  • The THS25100RJ is designed to withstand vibrations, but it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. TE Connectivity provides guidance on vibration testing and mounting in their application note AN-1045.
  • TE Connectivity provides a troubleshooting guide in their application note AN-1045, which covers common issues and their solutions. Additionally, consult the datasheet and contact TE Connectivity's technical support if you encounter any problems.
