- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TJA1024HG
- Part Number TJA1024HG
- Manufacturer NXP
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Other

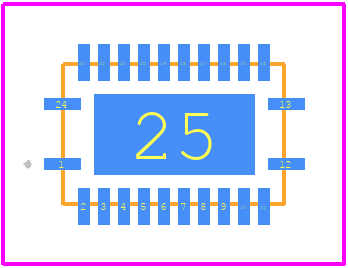

- Footprint Name Other - TJA1024HG-1
- Released Date Mar 8, 2022
- Last Modified Date Sep 2, 2025 7:38 AM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1024HG Details
-
Manufacturer Part Number:
TJA1024HG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
VQFN-24
-
Country Of Origin:
Thailand
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
5
-
Data Rate:
20 Mbps
-
JESD-30 Code:
R-PQCC-N24
-
Length:
5.5 mm
TJA1024HG Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11529, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The TJA1024HG is a flexible transceiver that can be configured for various CAN bus topologies, including star, bus, and tree topologies. The configuration depends on the specific application requirements and can be achieved through pin strapping, register programming, or using NXP's CAN transceiver configuration tool.
-
The maximum cable length supported by the TJA1024HG depends on the specific application and the CAN bus specification. In general, the TJA1024HG can support cable lengths up to 1 km, but this may vary depending on the bus speed, cable quality, and noise environment.
-
NXP provides a troubleshooting guide in the application note AN11530, which covers common issues and their solutions, including bus faults, error frames, and transmission errors. Additionally, NXP's CAN transceiver configuration tool can help diagnose and resolve issues.
-
The TJA1024HG is a standard CAN transceiver that is compatible with most CAN controllers and other CAN transceivers. However, compatibility may depend on the specific application and the controller or transceiver used. It is recommended to verify compatibility through testing or consulting with NXP's technical support.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TJA1024HG Overview

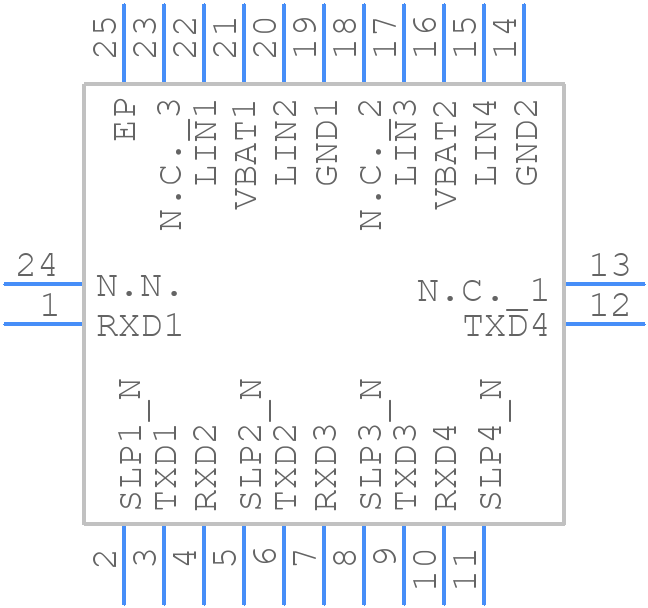

Use the download button to access the TJA1024HG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10,
or try a keyword search, such as Network Interfaces
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
