TJA1029T/2Z - NXP

Description: LIN 2.2A/SAE J2602 TRANSCEIVER WITH TXD DOMINANT TIMEOUT, REEL 13" Q1 NDP SSB, TAPE + REEL ROHS COMPLIANT: YES

Download TJA1029T/2Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

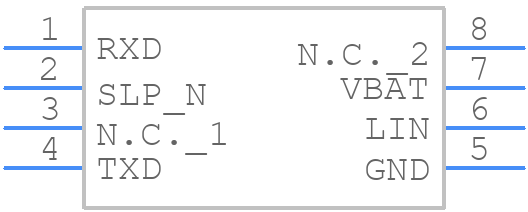

TJA1029T/2Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1029T/2Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
TJA1029T/2Z - NXP - 3D model - Small Outline Packages - SO8
click to zoom

TJA1029T/2Z Details

  • Manufacturer Part Number:

    TJA1029T/2Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1029T/2Z Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TJA1029T/2Z is dependent on the specific application and the characteristics of the cable. However, as a general guideline, NXP recommends a maximum cable length of 40 meters for a 500 kbps data rate and 20 meters for a 1 Mbps data rate.
  • To ensure EMC with the TJA1029T/2Z, follow proper PCB design and layout guidelines, use a common-mode choke or ferrite bead on the CAN bus lines, and ensure that the device is properly shielded and grounded. Additionally, follow the guidelines outlined in the NXP application note AN11588 for EMC considerations.
  • The recommended termination scheme for the TJA1029T/2Z is a 120 ohm resistor at each end of the CAN bus, with a common-mode termination of 2 x 47 ohm resistors to VCC and GND. This scheme provides optimal signal integrity and noise immunity.
  • The TJA1029T/2Z has built-in error detection and bus fault handling capabilities. The device can detect errors such as bit errors, stuff errors, and CRC errors, and can also detect bus faults such as short circuits and open circuits. The device can be configured to respond to these errors and faults through the use of interrupts and error flags.
  • The recommended power-up sequence for the TJA1029T/2Z is to first apply a stable VCC supply, followed by the application of a stable VIO supply. The device will then power up and become operational. It is recommended to follow the power-up sequence outlined in the NXP datasheet to ensure proper device operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1029T/2Z Overview

Use the download button to access the TJA1029T/2Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
