TJA1042TK/3 - NXP

Description: High-speed CAN transceiver with Standby mode

Download TJA1042TK/3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

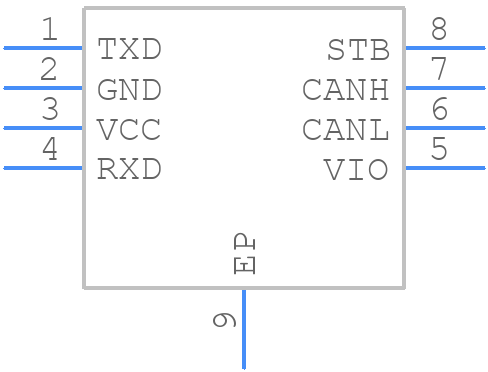

TJA1042TK/3 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1042TK/3 - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT782-1
click to zoom
3D Models
TJA1042TK/3 - NXP - 3D model - Small Outline No-lead - SOT782-1
click to zoom

TJA1042TK/3 Details

  • Manufacturer Part Number:

    TJA1042TK/3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    HVSON-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6.92

  • Data Rate:

    5000000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TJA1042TK/3 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TJA1042TK/3 is dependent on the specific application and the type of cable used. However, as a general guideline, NXP recommends a maximum cable length of 40 meters for a 500 kbps data rate and 20 meters for a 1 Mbps data rate.
  • To ensure EMC with the TJA1042TK/3, follow proper PCB design and layout guidelines, use a common-mode choke or ferrite bead on the CAN bus lines, and ensure that the device is properly shielded and grounded. Additionally, follow the guidelines outlined in the NXP application note AN11588 for EMC considerations.
  • The recommended operating temperature range for the TJA1042TK/3 is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time during soldering or reflow processes.
  • To troubleshoot CAN bus communication issues with the TJA1042TK/3, use a CAN bus analyzer tool to monitor the bus activity, check the termination resistors, and verify that the device is properly configured and powered. Additionally, check the device's error counters and status registers for any indication of errors or faults.
  • The TJA1042TK/3 is compatible with other CAN transceiver devices that conform to the ISO 11898-2 standard. However, it's recommended to verify compatibility with specific devices and systems before integration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1042TK/3 Overview

Use the download button to access the TJA1042TK/3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
