TJA1044CT/0Z - NXP

Description: CAN Interface IC High-Speed CAN Transceiver with Standby Mode

Download TJA1044CT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

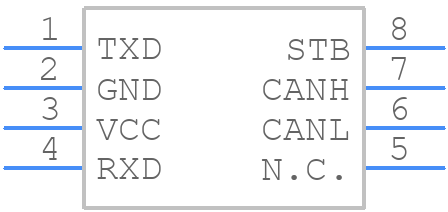

TJA1044CT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1044CT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - so-8
click to zoom
3D Models
TJA1044CT/0Z - NXP - 3D model - Small Outline Packages - so-8
click to zoom

TJA1044CT/0Z Details

  • Manufacturer Part Number:

    TJA1044CT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12

  • Additional Feature:

    ESD on pins CANH and CANL ESD is 8kV

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1044CT/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11535, which includes guidelines for component placement, routing, and thermal management to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The TJA1044CT/0Z is a flexible transceiver that can be configured for different bus speeds and node counts using external resistors and capacitors. Refer to the datasheet and application notes for specific configuration guidelines and examples.
  • The maximum cable length supported by the TJA1044CT/0Z depends on the bus speed, cable type, and system topology. As a general guideline, NXP recommends a maximum cable length of 40 meters for a 500 kbps bus speed and 20 meters for a 1 Mbps bus speed. However, the actual cable length may be shorter or longer depending on the specific system requirements and environmental conditions.
  • NXP provides a troubleshooting guide in the application note AN11536, which covers common issues and faults, as well as diagnostic techniques and tools to help identify and resolve problems quickly and efficiently.
  • The TJA1044CT/0Z is a CAN transceiver that conforms to the ISO 11898-2 standard, which ensures compatibility with other CAN transceivers and controllers from different manufacturers. However, it's always recommended to verify compatibility and interoperability through testing and validation in the specific system application.
