TJA1050T/CM - NXP

Description: IC: interface; transceiver; 1Mbps; 4.75÷5.25VDC; SO8; No.of rec: 1

Download TJA1050T/CM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

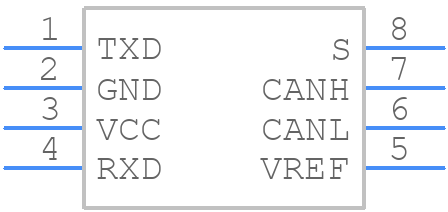

TJA1050T/CM - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1050T/CM - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO8xzx
click to zoom
3D Models
TJA1050T/CM - NXP - 3D model - Small Outline Packages - SO8xzx
click to zoom

TJA1050T/CM Details

  • Manufacturer Part Number:

    TJA1050T/CM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1050T/CM Frequently Asked Questions (FAQs)

  • The TJA1050T/CM supports cable lengths up to 40 meters, but this can vary depending on the specific application and cable characteristics.
  • The TJA1050T/CM has a built-in common-mode filter that helps to reject common-mode noise and voltage, ensuring reliable data transmission.
  • The TJA1050T/CM supports data rates up to 500 kbps, making it suitable for a wide range of automotive and industrial applications.
  • Yes, the TJA1050T/CM is compatible with other CAN transceivers that conform to the ISO 11898-2 standard, ensuring interoperability in multi-vendor systems.
  • The TJA1050T/CM has built-in fault-tolerant features, including bus fault detection and error detection, to ensure reliable data transmission and minimize errors.
