TJA1080ATS/2/T,118 - NXP

Description: NXP - TJA1080ATS/2/T,118 - Specialized Interface, Monitors System Performance, Internal Voltage & Temperature Monitoring

Download TJA1080ATS/2/T,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

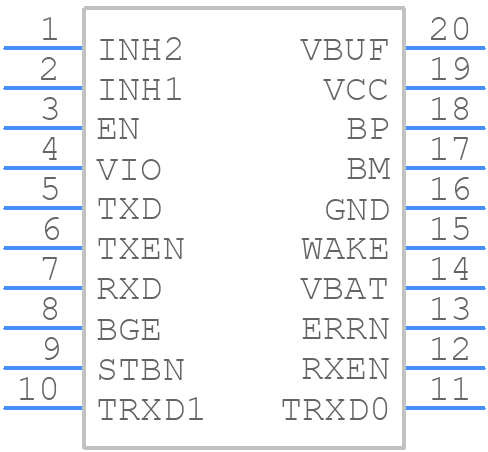

TJA1080ATS/2/T,118 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1080ATS/2/T,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SSOP20_45
click to zoom
3D Models
TJA1080ATS/2/T,118 - NXP - 3D model - Small Outline Packages - SSOP20_45
click to zoom

TJA1080ATS/2/T,118 Details

  • Manufacturer Part Number:

    TJA1080ATS/2/T,118

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP2

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT339-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    62 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TJA1080ATS/2/T,118 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the CAN bus traces as short as possible and away from noise sources. Use a common mode choke to filter out common mode noise.
  • Use a shielded cable for the CAN bus, and ensure the PCB is properly grounded. Add a common mode choke and a TVS diode for ESD protection. Follow the recommended layout and keep the CAN bus traces away from noise sources.
  • The maximum cable length depends on the bit rate and the type of cable used. For a 500 kbps bit rate, the maximum cable length is approximately 40 meters. For a 1 Mbps bit rate, the maximum cable length is approximately 10 meters.
  • Use a CAN bus analyzer to monitor the bus traffic and identify errors. Check the termination resistors, cable connections, and PCB layout for any issues. Verify the bit rate and node configuration are correct.
  • The power consumption of the TJA1080 in sleep mode is typically around 10 μA. However, this value can vary depending on the specific application and the mode of operation.
