5.30 MM, PLASTIC, MO-150, SOT-338, SHRINK, SSOP-16
Pin Count:
16
Manufacturer Package Code:
SOT338-1
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
10 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
7
Data Rate:
10000 Mbps
JESD-30 Code:
R-PDSO-G16
Length:
6.2 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Number of Transceivers:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP16,.3
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
2 mm
Supply Current-Max:
60 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Telecom IC Type:
FLEXRAY TRANSCEIVER
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
5.3 mm
TJA1081BTS,118 Frequently Asked Questions (FAQs)
A good PCB layout for the TJA1081BTS,118 involves keeping the CAN bus traces as short as possible, using a solid ground plane, and minimizing the distance between the transceiver and the CAN bus connector. Additionally, it's recommended to use a common-mode choke and a shielded cable for the CAN bus.
To ensure EMC with the TJA1081BTS,118, follow proper PCB design guidelines, use a shielded CAN bus cable, and ensure the device is properly grounded. Additionally, consider using a common-mode filter and a shielded enclosure for the device.
The TJA1081BTS,118 has a junction-to-ambient thermal resistance of 55°C/W. To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package.
Yes, the TJA1081BTS,118 is not limited to automotive applications. It can be used in any application that requires a CAN transceiver, such as industrial automation, medical devices, or aerospace systems, as long as the operating conditions and specifications are met.
To troubleshoot issues with the TJA1081BTS,118, start by checking the power supply, clock, and reset signals. Verify that the device is properly configured and that the CAN bus is properly terminated. Use a logic analyzer or oscilloscope to monitor the CAN bus signals and identify any errors or anomalies.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TJA1081BTS,118 Overview

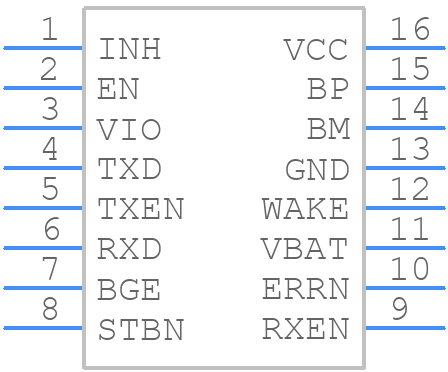

Use the download button to access the TJA1081BTS,118 schematic symbol, PCB footprint, and 3D model.
