Part Image

TJA1081TS,118 - NXP

Description: Interface - Specialized IC TXRX FLEXRAY

Download TJA1081TS,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

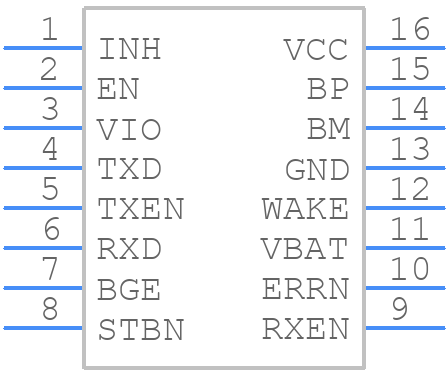

TJA1081TS,118 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1081TS,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SSOP16 (SOT338-1)
click to zoom
3D Models
TJA1081TS,118 - NXP - 3D model - Small Outline Packages - SSOP16 (SOT338-1)
click to zoom

TJA1081TS,118 Details

  • Manufacturer Part Number:

    TJA1081TS,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP1

  • Package Description:

    5.30 MM, PLASTIC, MO-150, SOT338-1, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT338-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Transceivers:

    1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    0.037 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TJA1081TS,118 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1081TS,118 involves keeping the CAN bus traces as short as possible, using a solid ground plane, and minimizing the distance between the transceiver and the CAN bus connector. Additionally, it's recommended to use a common-mode choke and a shielded cable for the CAN bus to reduce electromagnetic interference (EMI).
  • To ensure EMC with the TJA1081TS,118, follow proper PCB design guidelines, use a shielded CAN bus cable, and consider adding a common-mode choke and a ferrite bead to the CAN bus lines. Additionally, ensure that the device is properly grounded and that the system is designed to meet the relevant EMC standards (e.g., CISPR 25).
  • The TJA1081TS,118 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good heat dissipation by using a heat sink or a thermal pad, and avoid exposing the device to high ambient temperatures. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • To troubleshoot CAN bus communication issues with the TJA1081TS,118, start by checking the CAN bus signal integrity using an oscilloscope or a CAN bus analyzer. Verify that the transceiver is properly configured and that the CAN bus termination resistors are correctly connected. Also, check for electromagnetic interference (EMI) and ensure that the system is designed to meet the relevant EMC standards.
  • When using the TJA1081TS,118 in a redundant CAN bus system, ensure that the transceivers are properly synchronized and that the system is designed to handle the increased bus load. Consider using a CAN bus switch or a redundant CAN bus controller to manage the bus traffic and ensure reliable communication.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1081TS,118 Overview

Use the download button to access the TJA1081TS,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
