TJA1100HN - NXP

Description: Transmitter optimized for capacitive coupling to unshielded twisted-pair cable  Enhanced integrated PAM-3 pulse shaping for low RF emissions  Adaptive receive equalizer optimized for automotive cable length of up to at least 15 m  Reduced power consumption through configurable transmitter pulse amplitude adapted to cable length  Dedicated PHY enable/disable input pin to minimize power consumption  Low-power Sleep mode with local wake-up support  Robust remote wake-up via the bus lines  Gap-fr

Download TJA1100HN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

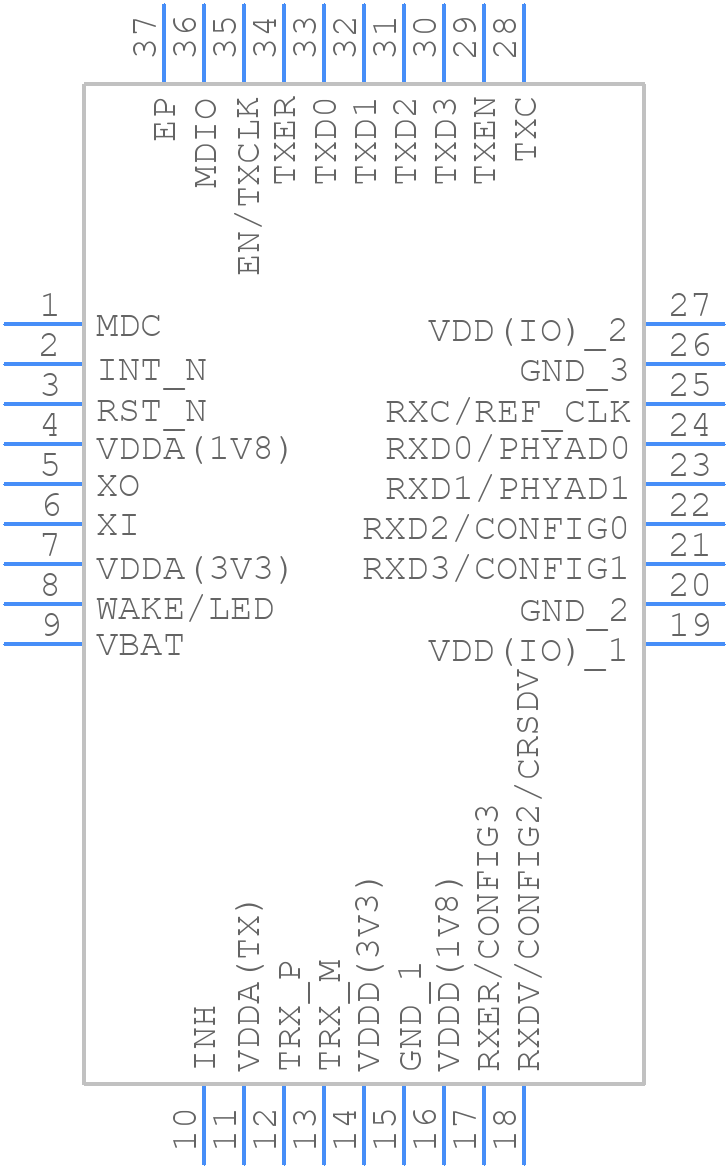

TJA1100HN - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1100HN - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT1092-2
click to zoom
3D Models
TJA1100HN - NXP - 3D model - Quad Flat No-Lead - SOT1092-2
click to zoom

TJA1100HN Details

  • Manufacturer Part Number:

    TJA1100HN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HVQFN-36

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Additional Feature:

    3.3V NOMINAL SUPPLY ALSO AVAILABLE

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N36

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TJA1100HN Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TJA1100HN is a flexible transceiver that can be configured for various automotive network protocols such as CAN, LIN, and SAE J1850. The configuration is typically done through the device's registers, and NXP provides software development kits (SDKs) and application notes that provide guidance on how to configure the device for specific protocols.
  • The maximum cable length supported by the TJA1100HN depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 40 meters for CAN and 10 meters for LIN, but this can be affected by factors such as cable quality, termination, and noise levels. NXP provides guidelines for cable selection and termination in the application note AN11524.
  • To ensure EMC with the TJA1100HN, it is essential to follow proper PCB design and layout guidelines, use appropriate shielding and filtering, and ensure that the device is properly terminated and matched to the transmission line. NXP provides guidance on EMC considerations in the application note AN11524 and the device's datasheet.
  • The TJA1100HN is a high-power device that requires proper thermal management to ensure reliability and performance. NXP recommends using a heat sink or thermal pad to dissipate heat, and provides guidance on thermal management in the application note AN11524 and the device's datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1100HN Overview

Use the download button to access the TJA1100HN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA11, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
