TJA1101AHN/0Z - NXP

Description: Ethernet ICs 2nd generation Ethernet PHY Transceivers - IEEE 100BASE-T1 compliant

Download TJA1101AHN/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

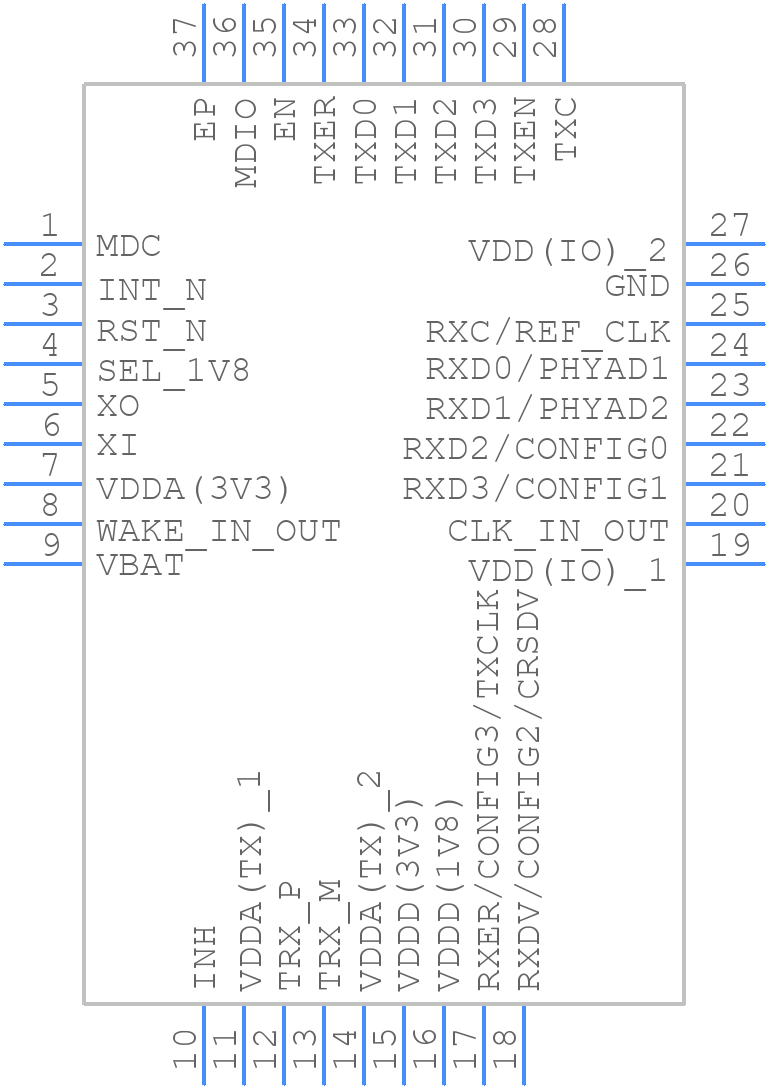

TJA1101AHN/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1101AHN/0Z - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TJA1101AHN/0Z
click to zoom
3D Models
TJA1101AHN/0Z - NXP - 3D model - Quad Flat No-Lead - TJA1101AHN/0Z
click to zoom

TJA1101AHN/0Z Details

  • Manufacturer Part Number:

    TJA1101AHN/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HVQFN-36

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A991

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9.39

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TJA1101AHN/0Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1101AHN/0Z involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins. NXP provides a recommended PCB layout in the application note AN11524.
  • To configure the TJA1101AHN/0Z for 100 Mbps operation, set the SPEED pin to a logic high level and ensure that the RXD0 and RXD1 pins are connected to the corresponding receive data lines. Additionally, ensure that the TXD0 and TXD1 pins are connected to the corresponding transmit data lines.
  • The maximum cable length supported by the TJA1101AHN/0Z depends on the specific application and the type of cable used. However, as a general guideline, the IEEE 802.3u standard recommends a maximum cable length of 100 meters for 100 Mbps Fast Ethernet applications.
  • To troubleshoot issues with the TJA1101AHN/0Z, start by checking the power supply voltage and ensuring that it is within the recommended range. Next, verify that the clock signal is present and stable. Then, check the transmit and receive data lines for any signs of signal degradation or noise. Finally, consult the NXP application notes and datasheet for specific troubleshooting guidelines.
  • The TJA1101AHN/0Z is a IEEE 802.3u compliant PHY device, which means it is compatible with other IEEE 802.3u compliant PHY devices. However, compatibility with specific devices may depend on the specific application and system design. It is recommended to consult the datasheet and application notes for specific compatibility information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1101AHN/0Z Overview

Use the download button to access the TJA1101AHN/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA11, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
