- Stock & Prices $ Price & Stock for TJA1101BHN/0Z
- Part Number TJA1101BHN/0Z
- Manufacturer NXP
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HVQFN36 6 x 6 x 0.85 mm
- Released Date Jun 3, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1101BHN/0Z Details
-
Manufacturer Part Number:
TJA1101BHN/0Z
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
HVQFN-36
-
Country Of Origin:
Mainland China, Taiwan
-
ECCN Code:
5A991
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
15 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Data Rate:
100000 Mbps
TJA1101BHN/0Z Frequently Asked Questions (FAQs)
-
A good PCB layout for the TJA1101BHN/0Z involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins. NXP provides a recommended PCB layout in the application note AN11524.
-
The TJA1101BHN/0Z can be configured using the SPI interface. The device has several registers that control its behavior, such as the bit rate, node ID, and error handling. NXP provides a detailed description of the registers and their settings in the datasheet and application notes.
-
The maximum cable length supported by the TJA1101BHN/0Z depends on the specific CAN bus application and the cable characteristics. In general, the TJA1101BHN/0Z supports cable lengths up to 40 meters at a bit rate of 1 Mbps. However, the actual cable length may be limited by the signal attenuation and noise susceptibility of the specific application.
-
To troubleshoot CAN bus communication issues with the TJA1101BHN/0Z, start by checking the physical connection and the CAN bus configuration. Use a logic analyzer or oscilloscope to monitor the CAN bus signals and verify that the TJA1101BHN/0Z is transmitting and receiving correctly. Check the error counters and status registers to identify the source of the issue.
-
The TJA1101BHN/0Z is a CAN transceiver that conforms to the ISO 11898-2 standard. It is compatible with other CAN transceivers that also conform to this standard. However, compatibility issues may arise if the other transceiver has different electrical characteristics or configuration options.
Trust Checks
Community Provided
System Verified
Community Approved
TJA1101BHN/0Z Overview

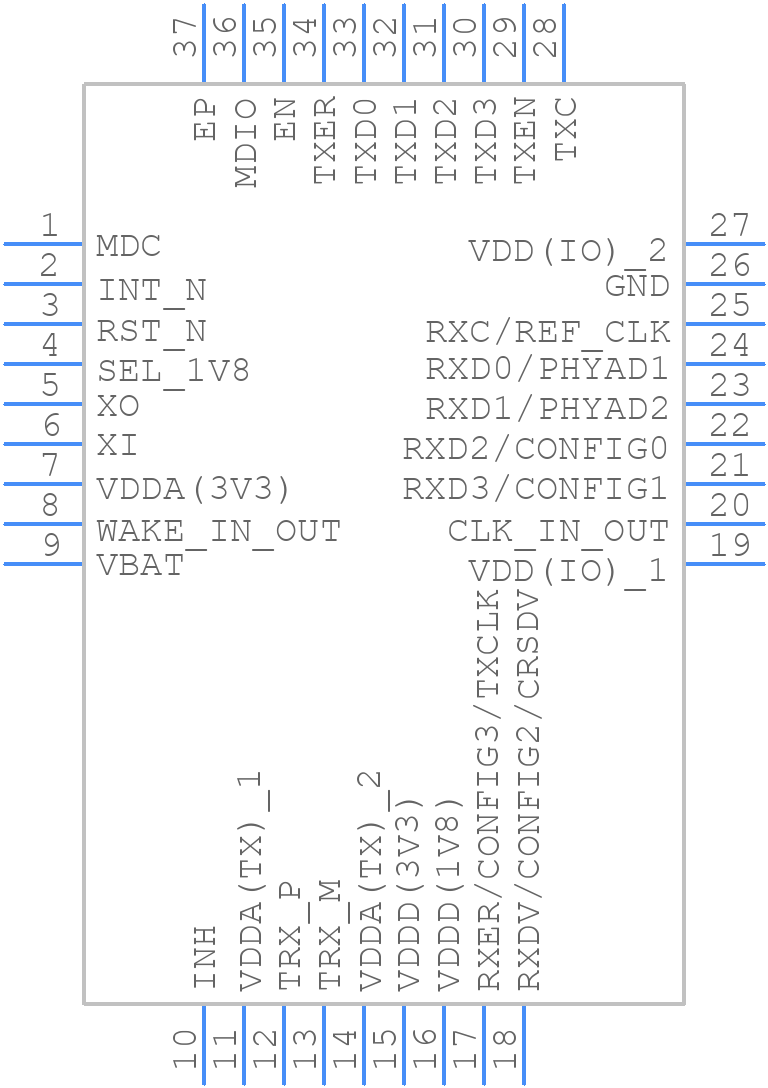

Use the download button to access the TJA1101BHN/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA11,
or try a keyword search, such as Network Interfaces
