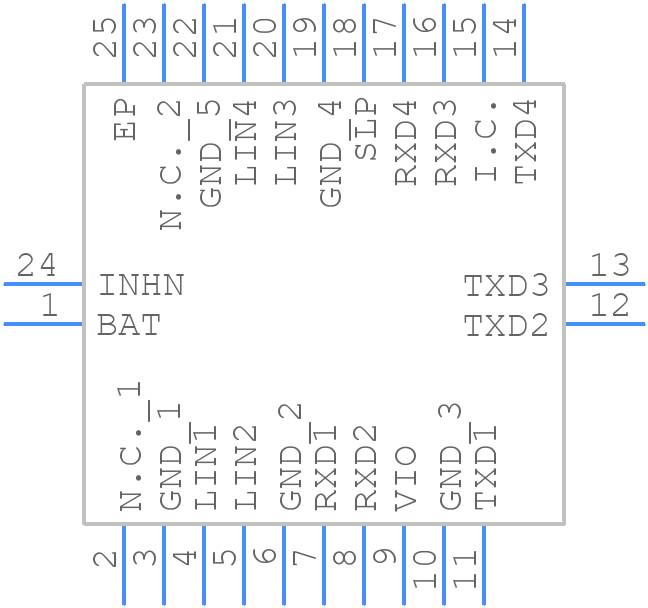

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TJA1124AHG
- Part Number TJA1124AHG
- Manufacturer NXP
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TJA1124AHG-1
- Released Date Mar 6, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1124AHG Details
-
Manufacturer Part Number:
TJA1124AHG
-
Part Life Cycle Code:
Active
-
Package Description:
DHVQFN-24
-
Country Of Origin:
Thailand
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
JESD-30 Code:
R-PQCC-N24
-
Length:
5.5 mm
-
Number of Functions:
1
-
Number of Terminals:
24
TJA1124AHG Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The TJA1124AHG is a flexible transceiver that can be configured for various CAN bus topologies, including star, bus, and tree topologies. Refer to the application note AN11524 for configuration guidelines and examples.
-
The maximum cable length supported by the TJA1124AHG depends on the specific CAN bus application and the cable characteristics. As a general guideline, NXP recommends a maximum cable length of 40 meters for a 500 kbps CAN bus. However, longer cable lengths may be possible with proper system design and testing.
-
NXP provides a troubleshooting guide in the application note AN11524, which covers common issues and their solutions. Additionally, the TJA1124AHG has built-in diagnostic features, such as a bus fault detector and a receive error counter, that can help identify and debug issues.
-
The TJA1124AHG is a CAN transceiver that conforms to the ISO 11898-2 standard, making it compatible with other CAN transceivers and controllers that adhere to the same standard. However, compatibility should be verified through testing and validation in the specific application.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TJA1124AHG Overview
Use the download button to access the TJA1124AHG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA11,
or try a keyword search, such as Network Interfaces
