TJA1124BHG/0Z - NXP

Description: LIN, REEL 13" Q1 NDP SSB, TAPE + REEL ROHS COMPLIANT: YES

Download TJA1124BHG/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

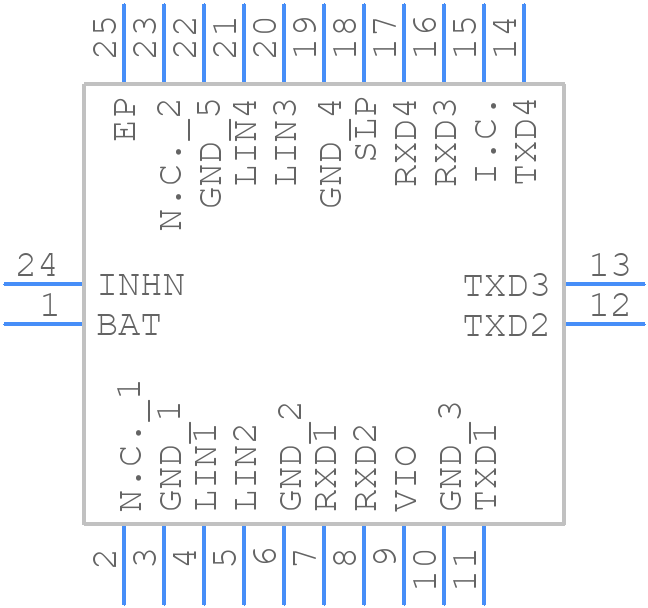

TJA1124BHG/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1124BHG/0Z - NXP PCB footprint - Other - Other - SOT815-1
click to zoom
3D Models
TJA1124BHG/0Z - NXP - 3D model - Other - SOT815-1
click to zoom

TJA1124BHG/0Z Details

  • Manufacturer Part Number:

    TJA1124BHG/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DHVQFN-24

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.12X16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    87 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TJA1124BHG/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TJA1124BHG/0Z is a high-speed CAN transceiver, but it can be configured for lower speeds by adjusting the slope control pin (SC) and the bus timing. Refer to the datasheet and application notes for specific configuration guidelines.
  • The maximum cable length supported by the TJA1124BHG/0Z depends on the specific CAN bus implementation and the cable characteristics. As a general guideline, the TJA1124BHG/0Z can support cable lengths up to 1 km at 500 kbps, but it's recommended to consult the datasheet and application notes for specific guidance.
  • To ensure EMC with the TJA1124BHG/0Z, follow the guidelines in the datasheet and application notes for proper PCB layout, component selection, and shielding. Additionally, consider using common-mode chokes and ferrite beads to reduce electromagnetic interference (EMI).
  • The TJA1124BHG/0Z has an operating temperature range of -40°C to 125°C, making it suitable for automotive and industrial applications.
