TJA1145AT/FD/0Z - NXP

Description: CAN Interface IC High-speed CAN transceiver

Download TJA1145AT/FD/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

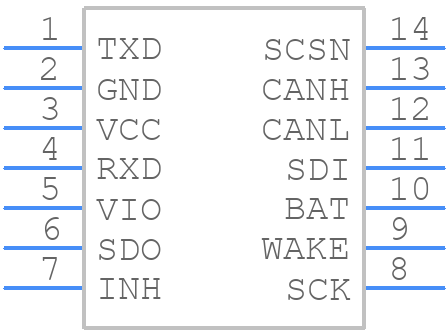

Symbol
TJA1145AT/FD/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1145AT/FD/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO14: plastic small outline package; 14 leads; body width 3.9 mm
click to zoom
3D Models
TJA1145AT/FD/0Z - NXP - 3D model - Small Outline Packages - SO14: plastic small outline package; 14 leads; body width 3.9 mm
click to zoom

TJA1145AT/FD/0Z Details

  • Manufacturer Part Number:

    TJA1145AT/FD/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-14

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    65 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1145AT/FD/0Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1145AT/FD/0Z involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure EMC, use a shielded enclosure, keep the PCB away from other components that may interfere with the CAN bus, and use a common-mode choke to filter out electromagnetic interference (EMI).
  • The maximum cable length supported by the TJA1145AT/FD/0Z is 40 meters, assuming a transmission rate of 1 Mbps and a cable with a characteristic impedance of 120 ohms.
  • To troubleshoot CAN bus issues, use a CAN bus analyzer to monitor the bus traffic, check the termination resistors, and verify that the bit rate and node addresses are correctly configured.
  • Yes, the TJA1145AT/FD/0Z can be used in a fault-tolerant CAN bus system by implementing a redundant CAN bus architecture and using the transceiver's built-in fault detection and reporting capabilities.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1145AT/FD/0Z Overview

Use the download button to access the TJA1145AT/FD/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA11, or try a keyword search

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
