Part Image

TJA1462AT/0Z - NXP

Description: CAN Interface IC CAN SIC transceiver with Standby mode

Download TJA1462AT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

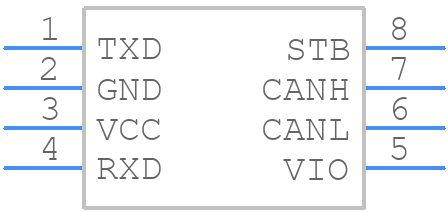

Symbol
TJA1462AT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1462AT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
TJA1462AT/0Z - NXP - 3D model - Small Outline Packages - SO8
click to zoom

TJA1462AT/0Z Details

  • Manufacturer Part Number:

    TJA1462AT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD SIC TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

TJA1462AT/0Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
  • Implement a robust communication protocol with error detection and correction mechanisms, such as CRC and retransmission. Also, use shielding and filtering to reduce electromagnetic interference.
  • The maximum cable length depends on the specific application and cable characteristics. As a general guideline, the TJA1462AT/0Z can support cable lengths up to 100 meters at 100 Mbps.
  • Use a logic analyzer or oscilloscope to monitor the signal quality and protocol communication. Check the power supply, clock signals, and termination resistors for any issues.
  • Yes, the TJA1462AT/0Z can be used in redundant or fault-tolerant systems. Implement a redundant transceiver configuration, and use a switch or multiplexer to select the active transceiver.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1462AT/0Z Overview

Use the download button to access the TJA1462AT/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
