TJA1463AT/0Z - NXP

Description: CAN Interface IC CAN SIC transceiver with Sleep mode

Download TJA1463AT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

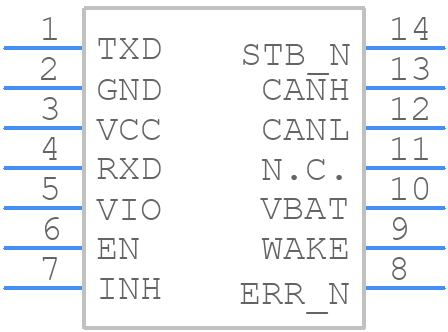

TJA1463AT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1463AT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT108-1 (SO14)
click to zoom
3D Models
TJA1463AT/0Z - NXP - 3D model - Small Outline Packages - SOT108-1 (SO14)
click to zoom

TJA1463AT/0Z Details

  • Manufacturer Part Number:

    TJA1463AT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    CAN FD SIC TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

TJA1463AT/0Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1463AT/0Z involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins. NXP provides a recommended PCB layout in the application note AN11535.
  • The TJA1463AT/0Z can be configured using the SPI interface. NXP provides a software development kit (SDK) that includes a configuration tool and example code to help engineers configure the device for their specific CAN bus application.
  • The maximum cable length supported by the TJA1463AT/0Z depends on the specific CAN bus application and the type of cable used. In general, the device supports cable lengths up to 40 meters at a data rate of 1 Mbps. However, NXP recommends consulting the CAN bus specification and performing tests to determine the maximum cable length for a specific application.
  • NXP provides a troubleshooting guide in the application note AN11535, which covers common issues and their solutions. Engineers can also use the device's built-in diagnostic features, such as the error counters and status registers, to help identify and troubleshoot issues.
  • The TJA1463AT/0Z is a CAN transceiver that meets the ISO 11898-2 standard, making it compatible with other CAN transceivers that meet the same standard. However, engineers should verify compatibility with specific devices and systems to ensure proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1463AT/0Z Overview

Use the download button to access the TJA1463AT/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
