TK10A80E,S4X - Toshiba

Description: MOSFET PLN MOS 800V 1000m (VGS=10V) TO-220SIS

Download TK10A80E,S4X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

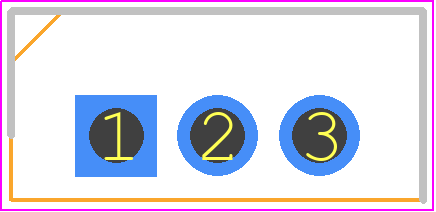

TK10A80E,S4X - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - 2-10U1S (TO-220SIS)
click to zoom
3D Models
TK10A80E,S4X - Toshiba  - 3D model - Transistor Outline, Vertical - 2-10U1S (TO-220SIS)
click to zoom

TK10A80E,S4X Details

  • Manufacturer Part Number:

    TK10A80E,S4X

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SC-67, TO-220SIS, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    454 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    800 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    1 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    15 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    50 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK10A80E,S4X Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The device should be placed near a heat sink or a thermal pad to ensure efficient heat dissipation.
  • The device requires a stable input voltage (VCC) and a proper biasing circuit to ensure optimal performance. A voltage regulator or a voltage reference should be used to maintain a stable input voltage.
  • Handle the device in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the device's pins or leads. Use an anti-static bag or wrap the device in anti-static material during storage or transportation.
  • The optimal gate resistor value depends on the specific application and the required switching frequency. A general guideline is to use a gate resistor value between 10 ohms and 100 ohms. Consult the application note or contact Toshiba support for more information.
  • For high-power applications, ensure good thermal contact between the device and the heat sink, use a thermal interface material (TIM) if necessary, and provide adequate airflow around the device. Monitor the device's junction temperature and adjust the thermal management strategy accordingly.
