Please enter a minimum 3 letters or numbers
Technical Content
Part Image

TK110P10PL,RQ - Toshiba

Description: MOSFET DPAK-OS PD=75W 1MHz PWR MOSFET TRNS

Download TK110P10PL,RQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TK110P10PL,RQ - Toshiba - PCB symbol
click to zoom
PCB Footprints

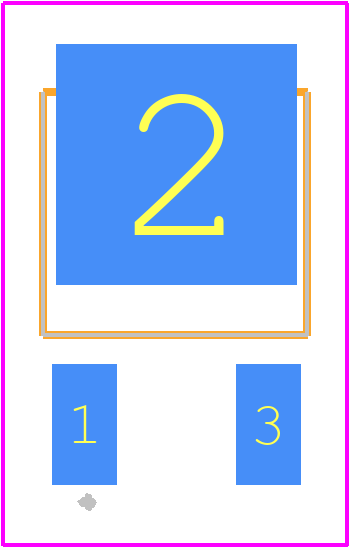

TK110P10PL,RQ - Toshiba PCB footprint - Other - Other - DPAK(2-7K1S)
click to zoom
3D Models
TK110P10PL,RQ - Toshiba - 3D model - Other - DPAK(2-7K1S)
click to zoom

TK110P10PL,RQ Details

  • Manufacturer Part Number:

    TK110P10PL,RQ

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    18 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    60 A

  • Drain-source On Resistance-Max:

    0.0106 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    22 pF

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    75 W

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK110P10PL,RQ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TK110P10PL,RQ is -40°C to 125°C.
  • To ensure reliability, it is recommended to derate the power dissipation of the TK110P10PL,RQ according to the temperature derating curve provided in the datasheet, and to ensure good thermal design and heat sinking.
  • The maximum allowable voltage for the TK110P10PL,RQ is 110V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The TK110P10PL,RQ is a surface-mount device and should be handled according to standard surface-mount assembly procedures, including proper storage, handling, and soldering techniques to prevent damage.
  • The typical lead time for delivery of the TK110P10PL,RQ varies depending on the region, distributor, and availability. It is recommended to check with authorized distributors or Toshiba America Electronic Components for the latest lead time information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TK110P10PL,RQ Overview

Use the download button to access the TK110P10PL,RQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TK110, or try a keyword search, such as Power Field-Effect Transistors

Parts related to TK110P10PL,RQ

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
