TK25S06N1L,LQ - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR DPAK+ PD=57W F=1MHZ

Download TK25S06N1L,LQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

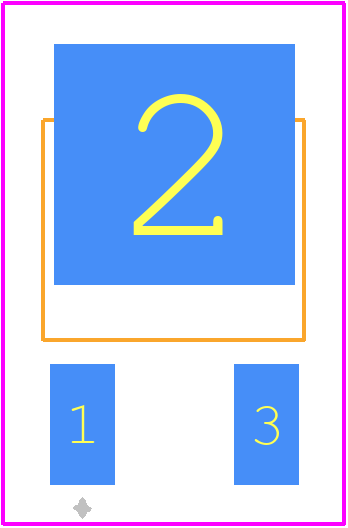

TK25S06N1L,LQ - Toshiba PCB footprint - Other - Other - TK25S06N1L,LQ-1
click to zoom
3D Models
TK25S06N1L,LQ - Toshiba  - 3D model - Other - TK25S06N1L,LQ-1
click to zoom

TK25S06N1L,LQ Details

  • Manufacturer Part Number:

    TK25S06N1L,LQ

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    22 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.0368 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    69 pF

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    57 W

  • Pulsed Drain Current-Max (IDM):

    50 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK25S06N1L,LQ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TK25S06N1L,LQ is -40°C to 150°C.
  • Yes, the TK25S06N1L,LQ is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of hazardous substances in electrical and electronic equipment.
  • The recommended storage temperature range for the TK25S06N1L,LQ is -40°C to 30°C.
  • Yes, the TK25S06N1L,LQ is suitable for high-reliability applications, such as automotive, industrial, and medical devices, due to its high-quality manufacturing process and rigorous testing.
  • The typical turn-on time for the TK25S06N1L,LQ is around 10-20 ns, depending on the specific application and operating conditions.
