TL3336AF100Q - E-Switch

Description: TL3336 Series Sealed, SMT Right Angle Tactile Switch Contact Rating: 12VDC, 50mA Contact Resistance: 100mΩ Max. (Initial) Insulation Resistance: 100MΩ Min. at 100VDC Dielectric Strength: 250VAC Temperature: -40°C to 85°C

Download TL3336AF100Q Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TL3336AF100Q model

Email notifications will be applied after download.

Send part feedback

Symbol

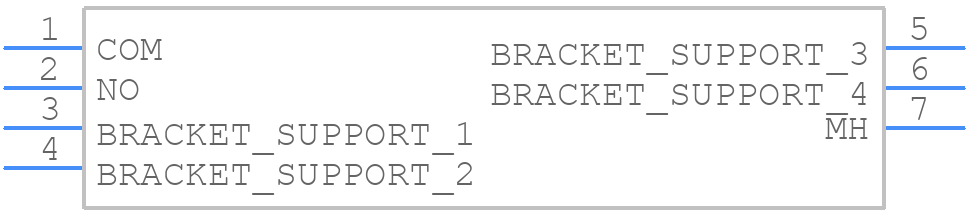

TL3336AF100Q - E-Switch - PCB symbol

PCB Footprints

TL3336AF100Q - E-Switch PCB footprint - Other - Other - TL3336AF100Q-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for TL3336AF100Q
Part Number TL3336AF100Q
Manufacturer E-Switch
Pin Count 7
Part Category Switch
Package Category Other
Footprint Name Other - TL3336AF100Q-4
Released Date Jun 4, 2025
Last Modified Date Dec 4, 2025 12:27 AM UTC
Pinout / Pin List Click Here (Member Only)

TL3336AF100Q Details

Manufacturer Part Number:
TL3336AF100Q
Manufacturer:
E-Switch Inc

Trust Checks

Community Provided

System Verified

Community Approved

TL3336AF100Q Overview

Use the download button to access the TL3336AF100Q schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TL333, or try a keyword search, such as Keypad Switches
