TL49W005000 - Apem

Description: Switch Toggle ON OFF ON DPDT Short Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket

Download TL49W005000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TL49W005000 - Apem - PCB symbol
click to zoom
PCB Footprints

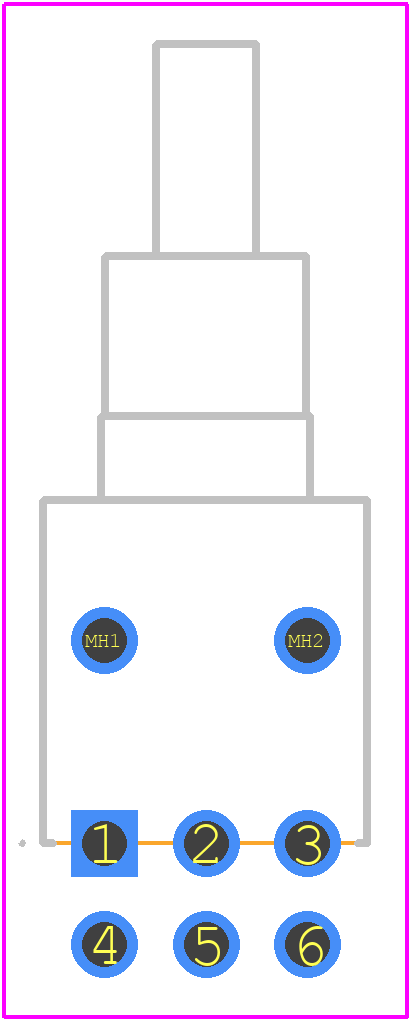

TL49W005000 - Apem PCB footprint - Other - Other - TL49W005000-2
click to zoom
3D Models
TL49W005000 - Apem - 3D model - Other - TL49W005000-2
click to zoom

TL49W005000 Details

  • Manufacturer Part Number:

    TL49W005000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    APEM Inc

  • YTEOL:

    7

  • Actuator Length:

    0.291 inch

  • Actuator Type:

    SHORT LEVER

  • Body Breadth:

    8.1 mm

  • Body Height:

    9.6 mm

  • Body Length or Diameter:

    8.58 mm

  • Bushing Diameter:

    0.196 inch

  • Bushing Length:

    0.225 inch

  • Contact (AC) Max Rating R Load:

    .02A@20VAC

  • Contact Current(AC)-Max:

    0.02 A

  • Contact Current(DC)-Max:

    0.02 A

  • Contact (DC) Max Rating R Load:

    .02A@20VDC

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    30000 Cycle(s)

  • Illumination:

    NON-ILLUMINATED

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Hole Count:

    8

  • Packing Method:

    BULK

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

TL49W005000 Frequently Asked Questions (FAQs)

  • APEM recommends a torque of 0.5 Nm to 1.5 Nm for mounting the TL49W005000, depending on the specific application and environmental conditions.
  • Yes, the TL49W005000 is designed to withstand high-vibration environments, but it's recommended to consult with APEM's application engineers to determine the suitability of the product for specific vibration levels and frequencies.
  • The TL49W005000 is rated for operation in temperatures ranging from -20°C to 85°C, but it's recommended to consult with APEM's application engineers for specific temperature derating and performance considerations.
  • The TL49W005000 is designed to be resistant to certain chemicals, but its compatibility depends on the specific chemical and environmental conditions. It's recommended to consult with APEM's application engineers to determine the suitability of the product for specific chemical environments.
  • APEM recommends cleaning the TL49W005000 with a soft, dry brush or a lint-free cloth, and avoiding the use of harsh chemicals or abrasive materials. For more detailed cleaning and maintenance procedures, it's recommended to consult with APEM's application engineers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL49W005000 Overview

Use the download button to access the TL49W005000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL49W, or try a keyword search, such as Toggle Switches
