TLA-3T107LF - TDK

Description: 130µH LAN Pulse Transformer 1:1.41 Surface Mount

Download TLA-3T107LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

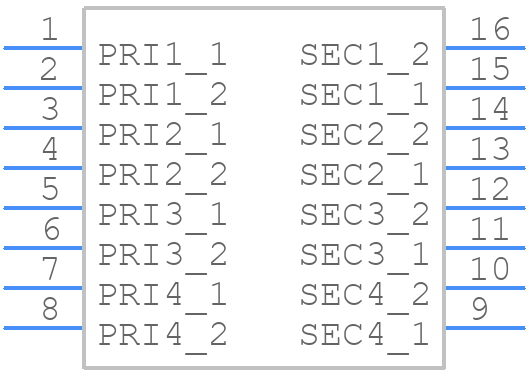

Symbol
TLA-3T107LF - TDK - PCB symbol
click to zoom
PCB Footprints
TLA-3T107LF - TDK PCB footprint - Small Outline Packages - Small Outline Packages - 16SOP
click to zoom
3D Models
TLA-3T107LF - TDK - 3D model - Small Outline Packages - 16SOP
click to zoom

TLA-3T107LF Details

  • Manufacturer Part Number:

    TLA-3T107LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO

  • Application:

    LAN; 10 BASE-T

  • Height:

    5.9 mm

  • Isolation Voltage:

    2000 V

  • JESD-609 Code:

    e3

  • Length:

    11.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Operating Temperature-Max:

    70 °C

  • Packing Method:

    BULK

  • Primary Inductance:

    130 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1.41

  • Width:

    6.8 mm

TLA-3T107LF Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a solid ground plane, and the component should be placed near the edge of the board to minimize radiation. A minimum of 10mm clearance from other components is recommended.
  • The TLA-3T107LF is designed to suppress high-frequency noise and EMI. It has a built-in EMI filter and is constructed with a ferrite core, which helps to absorb and dissipate high-frequency energy.
  • The TLA-3T107LF can operate safely within a temperature range of -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, the TLA-3T107LF is designed to withstand high-vibration environments. It has a rugged construction and is suitable for use in applications with vibration levels up to 10G.
  • Yes, the TLA-3T107LF is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLA-3T107LF Overview

Use the download button to access the TLA-3T107LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLA-3, or try a keyword search, such as Pulse/Datacom Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
