COMMON MODE CHOKES AVAILABLE, HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Application:
LAN; 10/100/1000 BASE-T
Height:
2.1 mm
Isolation Voltage:
1500 V
JESD-609 Code:
e3
Length:
12.7 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Operating Temperature-Max:
70 °C
Packing Method:
TAPE & REEL
Primary Inductance:
350 µH
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Transformer Type:
DATACOM TRANSFORMER
Turns Ratio (Np:Ns):
1CT:1CT; 1CT:1CT
Width:
8.37 mm
TLA-6T214ALF-T Frequently Asked Questions (FAQs)
The recommended PCB land pattern for the TLA-6T214ALF-T can be found in the TDK Corporation's 'Chip Inductors for General Use' application note (PDF). It provides detailed information on the recommended pad layout, dimensions, and spacing for optimal performance and reliability.
The TLA-6T214ALF-T is designed to minimize high-frequency noise and EMI due to its ferrite core material and shielded construction. However, to further reduce EMI, it's recommended to use proper PCB layout techniques, such as separating analog and digital grounds, using ground planes, and adding EMI filters or shielding if necessary.
The TLA-6T214ALF-T has a rated operating temperature range of -40°C to +125°C. While it can tolerate high temperatures, it's essential to consider the derating curve and ensure that the inductor does not exceed its maximum rated current and temperature to prevent degradation or failure.
The TLA-6T214ALF-T is designed to operate within its specified current rating. If the inductor is subjected to excessive current, it may enter saturation, causing a decrease in inductance and potentially leading to overheating or failure. To avoid saturation, ensure that the inductor is operated within its specified current rating and consider using current limiting or protection circuits if necessary.
Yes, the TLA-6T214ALF-T is compatible with lead-free soldering processes. TDK Corporation ensures that its products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering temperatures up to 260°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLA-6T214ALF-T Overview

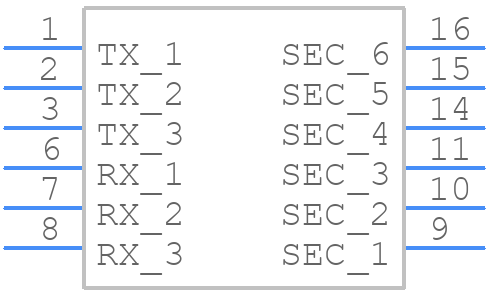

Use the download button to access the TLA-6T214ALF-T schematic symbol, PCB footprint, and 3D model.
